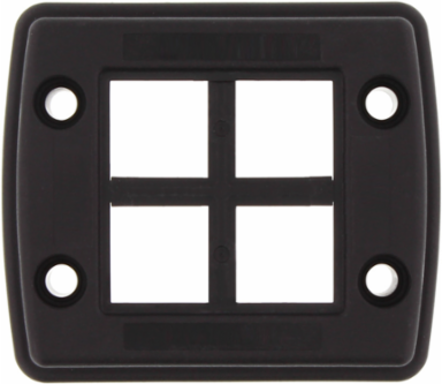

Weidmuller 2583780000 CABTITE FR 4-1 BK SET
- MPN: 2583780000
- PPN: WDM-2583780000
CAD
$46.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 81 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|

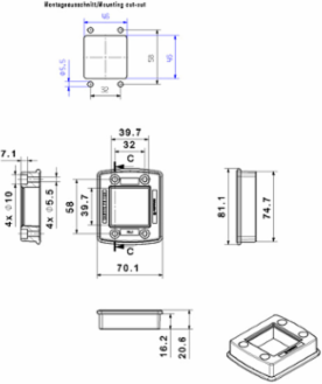

Dimensions And Weights
| Width | 81 mm |
|---|---|
| Height | 70 mm |
| Height of lowest version | 19.6 mm |
| Depth (inches) | 0.772 inch |
| Mounting dimension - height | 58 mm |
| Diameter | 5.5 mm |
| Width (inches) | 3.189 inch |
|---|---|
| Height (inches) | 2.756 inch |
| Depth | 19.6 mm |
| Mounting dimension - width | 32 mm |
| Net weight | 43.34 g |
General Information
| Tightening torque | 3 Nm |
|---|---|
| Opening length | 46 mm |

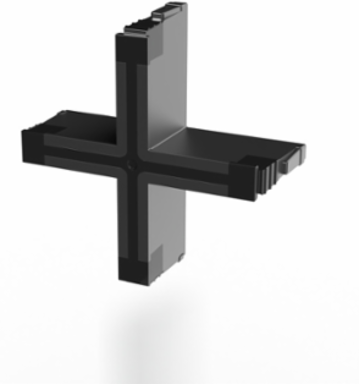

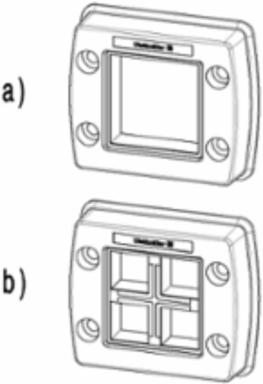

| Sealing element | 1 large sealing element or 4 small sealing elements |
| Silicone | No |
| Material | Polyamide, glass fibre-reinforced |
| Opening width | 46 mm |
|---|---|
| UL 94 flammability rating | V-0 |
| Halogen | No |
| Sealing | TPE |
Classifications
| ETIM 6.0 | EC002624 |
|---|---|
| eClass 9.0 | 27-18-28-15 |
| eClass 10.0 | 27-18-28-15 |
| ETIM 7.0 | EC002624 |
|---|---|
| eClass 9.1 | 27-18-92-65 |
