Weidmuller 2583720000 CABTITE FR 24/10 BK SET
- MPN: 2583720000
- PPN: WDM-2583720000
CAD
$89.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

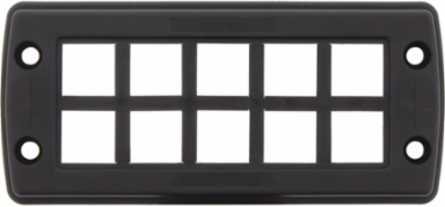

Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 153 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
General Information
| Tightening torque | 3 Nm |
|---|---|
| Opening length | 113.5 mm |

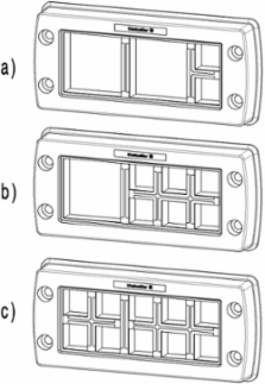

| Sealing element | 2 large sealing elements and 4 small sealing elements or 1 large sealing element and 6 small sealing elements or 10 small sealing elements |
| Silicone | No |
| Material | Polyamide, glass fibre-reinforced |
| Opening width | 46 mm |
|---|---|
| UL 94 flammability rating | V-0 |
| Halogen | No |
| Sealing | TPE |

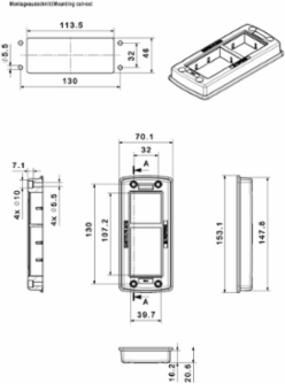

Dimensions And Weights
| Width | 153 mm |
|---|---|
| Height | 70 mm |
| Height of lowest version | 19.6 mm |
| Depth (inches) | 0.772 inch |
| Mounting dimension - height | 130 mm |
| Diameter | 5.5 mm |
| Width (inches) | 6.024 inch |
|---|---|
| Height (inches) | 2.756 inch |
| Depth | 19.6 mm |
| Mounting dimension - width | 32 mm |
| Net weight | 110 g |
Classifications
| ETIM 6.0 | EC002624 |
|---|---|
| eClass 9.0 | 27-18-28-15 |
| eClass 10.0 | 27-18-28-15 |
| ETIM 7.0 | EC002624 |
|---|---|
| eClass 9.1 | 27-18-92-65 |
Approvals
| ROHS | Conform |
|---|
