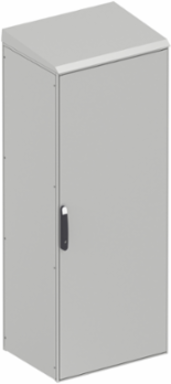

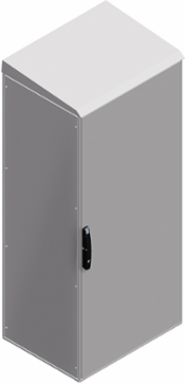

Schneider Electric NSYSC1040 Spacial SF/SN Roof Canopy 999x400mm Galvanised Steel
Schneider Electric NSYSC1040 Spacial SF/SN Roof Canopy 999x400mm Galvanised Steel
- MPN: NSYSC1040
- PPN: SCH-NSYSC1040
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$511.82/ EA
Description
Spacial SF / SM Canopy. 999 x 400 mm. On top of enclosure mounting. Attachment requires drillings in the enclosures roof, fixing by screws. Galvanised steel. Epoxy-polyester powder finish, grey RAL 7035. Can be mounted on coupled enclosures.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 canopy, fixing elements, drilling template
- Carbon Footprint Of The Distribution Phase A4
- 1.443929637, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.663226682, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 53 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional Unit Unit
- unit
- Reference Lifetime In Y2
- 20
- Recyclability Potential In 2
- 98
- Height Nominal
- 85 mm
- Width Real
- real: 1007 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C418 kg CO2 eq., 17.63370788
Carbon Footprint Of The Manufacturing Phase A1 To A333 kg CO2 eq., 32.59273361
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws - roof drilled holes
Mounting Locationon top of enclosure
Product Or Component Typecanopy
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Accessory Separate Part Categoryenclosure accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G27501
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Width Nominalnominal: 1000 mm
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 53.33359781
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- canopy
ETIM
- ETIM 8
- EC000744
ETIM 9EC000744
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 39.65 in
Country of OriginUnited States
