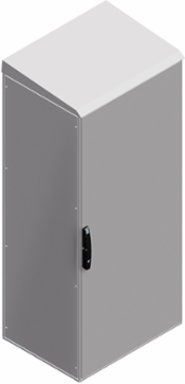

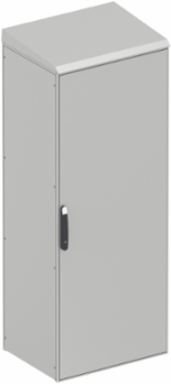

Schneider Electric NSYSC860 Roof Canopy for Electrical Enclosure 800mm x 600mm, Galvanised Steel
- MPN: NSYSC860
- PPN: SCH-NSYSC860
CAD
$540.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF / SM Canopy. 799 x 600 mm. On top of enclosure mounting. Attachment requires drillings in the enclosures roof, fixing by screws. Galvanised steel. Epoxy-polyester powder finish, grey RAL 7035. Can be mounted on coupled enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.35 in
- Country of Origin
- Brazil, Spain, France, United States
Width31.77 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 canopy, fixing elements, drilling template
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by screws - roof drilled holes
- Mounting Location
- on top of enclosure
- Product Or Component Type
- canopy
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Accessory Separate Part Category
- enclosure accessory
- Height Nominal
- 85 mm
- Width Nominal
- nominal: 800 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Height Useful85 mm
Width Realreal: 807 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- canopy
ETIM
- ETIM 8
- EC000744
ETIM 9EC000744
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
