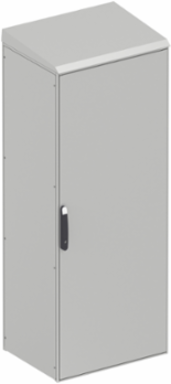

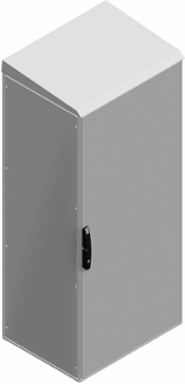

Schneider Electric NSYSC630 Spacial SF/SM Canopy 600x300 mm, Galvanised Steel, Gray RAL 7035
- MPN: NSYSC630
- PPN: SCH-NSYSC630
CAD
$375.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, the Spacial SF/SM canopy from Schneider Electric is an essential accessory for your enclosure needs. Crafted from galvanised steel and finished with an epoxy-polyester powder, this canopy not only provides robust protection but also enhances the aesthetic appeal of your setup with its sleek gray color (RAL 7035). With nominal dimensions of 600 mm in width and 300 mm in depth, this multi-purpose canopy is ideal for mounting on top of enclosures, ensuring that your devices remain safe and secure. It includes all necessary fixing elements and a drilling template for straightforward installation, making it a practical choice for various applications within automation, control, and communication environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 23.9 in
Height3.35 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 canopy, fixing elements, drilling template
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Fixing Mode
- by screws - roof drilled holes
- Mounting Location
- on top of enclosure
- Product Or Component Type
- canopy
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Height Nominal
- 85 mm
- Width Nominal
- nominal: 600 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 4.226 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-04-15
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Height Useful85 mm
Width Realreal: 607 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- canopy
ETIM
- ETIM 8
- EC000744
ETIM 9EC000744
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
