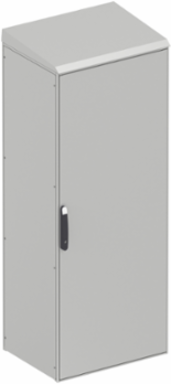

Canopy Roof for Enclosure 1600mm x 500mm, Galvanized Steel, Gray RAL 7035
Canopy Roof for Enclosure 1600mm x 500mm, Galvanized Steel, Gray RAL 7035
Canopy Roof for Enclosure 1600mm x 500mm, Galvanized Steel, Gray RAL 7035
Schneider Electric

Schneider Electric NSYSC1650 Canopy Roof for Enclosure 1600mm x 500mm, Galvanized Steel, Gray RAL 7035

  • MPN: NSYSC1650
  • PPN: SCH-NSYSC1650
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $583.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

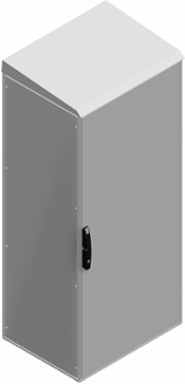

    Spacial SF / SM Canopy. 1599 x 500 mm. On top of enclosure mounting. Attachment requires drillings in the enclosures roof, fixing by screws. Galvanised steel. Epoxy-polyester powder finish, grey RAL 7035. Can be mounted on coupled enclosures.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Spain
    Width
    62.99 in
    Height3.35 in

    Physical Attributes

    Color
    Gray RAL 7035)

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    1 canopy, fixing elements, drilling template
    Carbon Footprint Of The Distribution Phase A4
    2.871689418, 3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    3.307827709, 3 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    0 kg CO2 eq., 0
    Local Publishable Date
    2026-04-15
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1912
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Fixing Mode
    by screws - roof drilled holes
    Mounting Location
    on top of enclosure
    Product Or Component Type
    canopy
    Range
    PanelSeT
    Software Version
    v5.9.4
    Sustainable Packaging
    No
    Accessory Separate Part Category
    enclosure accessory
    Pep Code
    ENVPEP1109023EN
    Pep Verification Date
    2023-03-30
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Recyclability Potential, In %
    98
    Height Useful
    85 mm
    Width Real
    nominal: 1600 mm
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Enclosure Nominal Dimensions-, -
    Carbon Footprint Of The End Of Life Phase C1 To C435 kg CO2 eq., 35.06994456
    Carbon Footprint Of The Manufacturing Phase A1 To A365 kg CO2 eq., 64.82047727
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Energy Efficiency OptimizedFalse
    Materialgalvanised steel
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quantity Per Setset of 1
    ReturnabilityNo
    Surface Finishepoxy-polyester powder
    Total Lifecycle Carbon Footprint106 kg CO2 eq.
    Warranty In Months18
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Height Nominal85 mm
    Width Nominalreal: 1607 mm

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    106.069939
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1109023EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP1109023EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    canopy

    ETIM

    ETIM 8
    EC000744
    ETIM 9EC000744

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
