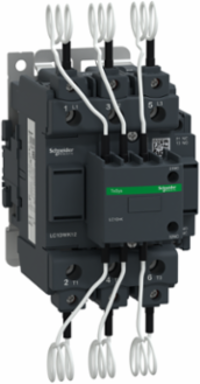

Schneider Electric LC1DWK12M7 TeSys Deca Capacitor Contactor 3P 63kVAR 400V 220V AC Coil
- MPN: LC1DWK12M7
- PPN: SCH-LC1DWK12M7
CAD
$737.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France
Depth154 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
Maximum Operating Rate100 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- DIN rail, plate
- Tightening Torque
- power circuit 9 N.m connector, control circuit 1.7 N.m screw clamp terminals
- Connections - Terminals
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-25 mm² - cable stiffness: solidpower circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 5 kg CO2 eq., 4.7072
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 10.946
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Manufacturing Carbon Footprint
- 10.946
- End Of Life Carbon Footprint
- 4.7072
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LC1D
- Device Application
- control
- Electrical Durability
- 300000 cycles 400 V200000 cycles 690 V
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- capacitor duty contactor
- Range Of Product
- TeSys Deca
- Returnability
- No
- Sustainable Packaging
- Yes
- Utilisation Category
- AC-6b
- Control Circuit Voltage 18 Control Circuit Voltage
- 220 V
- Pep Code
- ENVPEP1112074EN
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 180 mm
- [Uc] Control Circuit Voltage
- 220 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 10.636
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 4.6736
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 10.946
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 4.7072
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 15949.24
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 6.3424
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 15510
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2754.1
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 3782.4
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 2.0243
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 124.13
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 129.11
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -2993.5
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 3.0988
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 2093.6
- Materials For Recycling (Kg) Total Life Cycle
- 1.2976
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 1.1346
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 7.2364
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -100.49
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 15.686
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 6.3424
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 16944
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2778.5
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1433.9
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 15.686
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 15933.56
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 6.3424
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 15510
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2754.1
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.6296
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.4021
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -21.546
- Water Use (M3 Eq) Distribution [A4]
- 0.0265
- Water Use (M3 Eq) End Of Life [C1-c4]
- 2.0745
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Product NameTeSys LC1D.K, TeSys Deca
Certificate AgencyIECEE CB Scheme, UL, CSA, UKCA
Carbon Footprint Of The Distribution Phase [A4]0.52233, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.29663, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]81 kg CO2 eq., 80.77
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Use Carbon Footprint80.77
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationpower factor correction
Device Short NameLC1DWK
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
Reactive Power Rating35 kvar 230-230 V AC 50 Hz 60 °C63 kvar 400-400 V AC 50 Hz 60 °C67 kvar 440-440 V AC 50 Hz 60 °C104 kvar 690-690 V AC 50 Hz 60 °C30 kvar 230-230 V AC 60 Hz 60 °C60 kvar 460-460 V AC 60 Hz 60 °C80 kvar 575-575 V AC 60 Hz 60 °C
Software Versionv5.9.4
Total Lifecycle Carbon Footprint97 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Type 1 Network Frequency50/60 Hz
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type Capacitor duty contactor, a control circuit voltage 220V, a power circuit voltage 690V and a rated operational current 80A.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %67
Width Nominal85 mm
[Ue] Rated Operational Voltagepower circuit 690 V AC 50/60 Hz
Package Weight(Lbs)1.786 kg
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]80.562
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-121.43
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]80.77
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-121.78
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]220.55
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.0876
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]209.26
Ecotoxicity (Fresh Water) (Ctue) Total Life Cycle4481.1264
Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]2.1421
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]570.43
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-2110.3
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.7346
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.5748
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]2456.2
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-136.26
Materials For Recycling (Kg) Installation [A5]0.163
Net Use Of Fresh Water (M3) Benefits/Loads Beyond System Boundaries [D]-1.2384
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7.7665
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle15.686
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]225.58
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.3091
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]210.08
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.0316
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-24.48
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]15.686
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]204.87
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.0876
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]209.26
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.6296
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-2.934
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1433.9
Water Use (M3 Eq) Manufacturing [A1-a3]4.0178
Water Use (M3 Eq) Operational Energy Use [B6]5.85
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-53.184
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 97.24216
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1112074EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1112074EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- capacitor duty contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001079
ETIM 9EC001079
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
