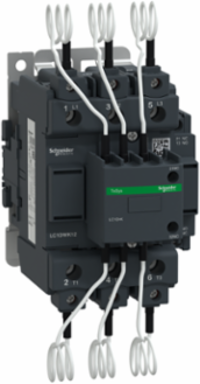

Schneider Electric LC1DWK12G7 TeSys Deca Capacitor Contactor 63kVAR 3-Pole 120V AC
- MPN: LC1DWK12G7
- PPN: SCH-LC1DWK12G7
CAD
$737.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 120V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Czechia, France, United States
Depth154 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
Maximum Operating Rate100 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Location In System
- inside delta interruption, line interruption
- Product Name
- TeSys LC1D.K, TeSys Deca
- Certificate Agency
- IECEE CB Scheme, UL, CSA, UKCA
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contactor Application
- power factor correction
- Device Short Name
- LC1DWK
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Reactive Power Rating
- 35 kvar 230-230 V AC 50 Hz 60 °C63 kvar 400-400 V AC 50 Hz 60 °C67 kvar 440-440 V AC 50 Hz 60 °C104 kvar 690-690 V AC 50 Hz 60 °C30 kvar 230-230 V AC 60 Hz 60 °C60 kvar 460-460 V AC 60 Hz 60 °C80 kvar 575-575 V AC 60 Hz 60 °C
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Type 1 Network Frequency
- 50/60 Hz
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type Capacitor duty contactor, a control circuit voltage 220V, a power circuit voltage 690V and a rated operational current 200A.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 67
- Width Nominal
- 85 mm
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Package Weight(Lbs)
- 1.8 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting SupportDIN rail, plate
Tightening Torquepower circuit 9 N.m connector, control circuit 1.7 N.m screw clamp terminals
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-25 mm² - cable stiffness: solidpower circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable endpower circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable endpower circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable endpower circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLC1D
Device Applicationcontrol
Electrical Durability300000 cycles 400 V200000 cycles 690 V
Pole Contact Composition3 NO
Product Or Component Typecapacitor duty contactor
Range Of ProductTeSys Deca
ReturnabilityYes
Sustainable PackagingYes
Utilisation CategoryAC-6b
Control Circuit Voltage 18 Control Circuit Voltage120 V
Pep CodeENVPEP1112074EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal180 mm
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1112074EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1112074EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- capacitor duty contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001079
ETIM 9EC001079
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
