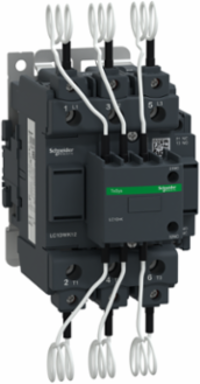

Schneider Electric LC1DWK12V7 TeSys Deca Capacitor Contactor 63kVAR 400V 50Hz 3 Poles IP20
- MPN: LC1DWK12V7
- PPN: SCH-LC1DWK12V7
CAD
$737.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 400V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- IECEE CB Scheme || UL || CSA || UKCA
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Control Circuit Type
- AC 50/60 Hz
- Contactor Application
- power factor correction
- Product Name
- TeSys LC1D.K || TeSys Deca
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-6b
- Auxiliary Contact Composition
- 1 NO + 2 NC instantaneous
- Electrical Durability
- 300000 cycles 400 V || 200000 cycles 690 V
- Device Application
- control
[Uc] Control Circuit Voltage400 V AC 50/60 Hz
Reactive Power Rating35 kvar 230-230 V AC 50 Hz 60 °C || 63 kvar 400-400 V AC 50 Hz 60 °C || 67 kvar 440-440 V AC 50 Hz 60 °C || 104 kvar 690-690 V AC 50 Hz 60 °C || 30 kvar 230-230 V AC 60 Hz 60 °C || 60 kvar 460-460 V AC 60 Hz 60 °C || 80 kvar 575-575 V AC 60 Hz 60 °C
Mounting SupportDIN rail || plate
Device Location In Systemline interruption || inside delta interruption
Product Or Component Typecapacitor duty contactor
RangeTeSys
Connections - Terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: connector 1 4-50 mm² - cable stiffness: solid || power circuit: connector 2 4-25 mm² - cable stiffness: solid || power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end || power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end || power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end || power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end
Maximum Operating Rate240 cyc/h
Tightening Torquepower circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals
Poles Description3P
Device Short NameLC1DWK
Complementary
- Auxiliary Contacts Type
- mechanically linked 1 NO + 2 NC IEC 60947-5-1
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Net Weight
- 1.65 kg
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Width
- 85 mm
Height180 mm
Ambient Air Temperature For Storage-60-80 °C
Operating Altitude0...3000 m
Depth154 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111274EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
