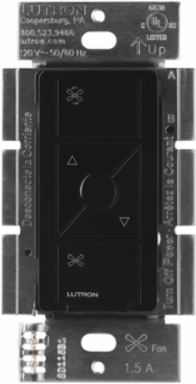

Lutron PD-FSQN-BL Caseta Smart Fan Speed Control 600W for Ceiling Fans, Wireless, Black Finish
Lutron PD-FSQN-BL Caseta Smart Fan Speed Control 600W for Ceiling Fans, Wireless, Black Finish
- MPN: PD-FSQN-BL
- UPC: 784276260824
- PPN: LUT-PD-FSQN-BL
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.98/ EA
Description

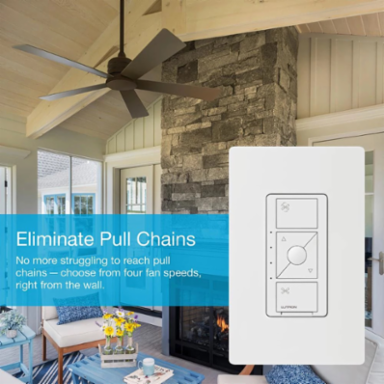

The Caseta Wireless Smart Fan Speed Control Switch gives you the ability to turn your fan on/off or choose between four speeds for increased comfort. This fan speed control is rated for 1 ceiling paddle fan up to 1.5A. Ceiling fans with integrated fan speed and/or light modules, proprietary remotes, or DC motors are not compatible with this device. Use with the wireless Fan Pico remote (PJ2-3BRL-GXX-F01, sold separately) for control from anywhere around your home. Existing hardwired 3-way switches will not work with this dimmer, for 3-way and multi-location applications Pico remotes must be used with this fan speed control. Replace the existing switch with a Fan Pico remote control and wall plate adapter to control the fan from every location (PICO-WBX-ADAPT sold separately). For increased versatility, add the Caseta Smart Hub (L-BDG2-WH, sold separately) and use with the free Lutron app to set up your favorite scenes and create schedules based on time of day. Integrate with other Smart Home brands, including Amazon Alexa, Google Home, Ring and more. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes: One (1) Caseta Wireless Smart Fan Speed Control; Gloss finish
- Works with up to 1.5A single ceiling fan; not compatible with fans with proprietary remotes or DC motors
- Neutral Required; 120V

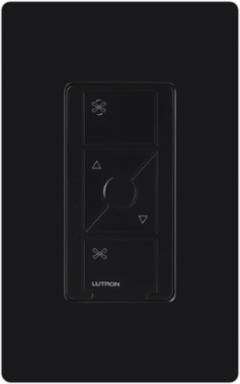

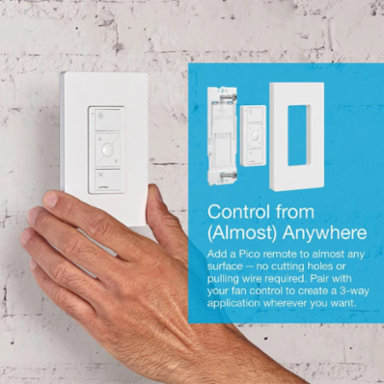

- Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-3BRL-GWH-F01); Cannot be wired to existing 3-way switches
- Add a smart hub to connect with Alexa, Apple Home, Google Home, Ring, Serena Shades, SONOS, and more
- Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls)
- Preset button allows you to turn your fan on to your preferred predetermined level
- Pair up to ten (10) Pico Remotes to one (1) Lutron Caseta Fan Speed control (limitations reflect when no Lutron Smart Hub installed)
- Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control)
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Simple, intuitive design with on, off and raise/lower buttons
- Provides true dimming from each location with Pico wireless remotes
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Aesthetic Finish
- Glossy
- Type
- Wireless in-wall dimmer, multi-location/single-pole
- Wattage
- 600 W
- Operating Temperature, Maximum
- 104 F
- Connection Type
- Wire Leads
- Decorative Color
- Black
- Family Color
- Black
- Frequency Rating
- 434 MHz (RF)
- Enclosure
- Plastic
- Size
- 4.69 x 2.94;119 x 75 in;mm
- Actuator
- Push-button
- Operating Temperature
- 32 to 104 F
- Color
- Black
ApplicationLighting Control
Voltage Rating120
Frequency Rating, Minimum434 Hz
Operating Temperature, Minimum32 F
Switch TypePush Button
Number of Poles1
Face MaterialMetal;Plastic
InsulationPlastic
FinishGloss
ConnectionWire Leads
MountingWallbox
MaterialPlastic/Metal
