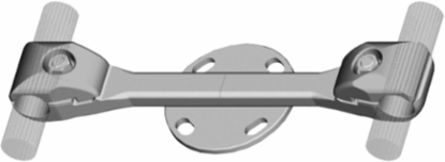

Burndy SH2GBP45A5 Cast Aluminum Bus Support Spacer 18 Inch, 2 Conductors, 1033.5-1192 kcmil AL Cable
- MPN: SH2GBP45A5
- UPC: 781810215418
- PPN: BUR-02003314
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Aluminum Bus Support Spacer 18 Inch, 2 Conductors, 1033.5-1192 kcmil AL Cable
Specifications
Additional
- Length
- 18 in
- Conductor Size Range
- 1033.5-1192 kcmil AL
- Conductor Spacing
- 18
- Conductor Type
- Base to Cable
- Material - Hardware
- Aluminum Alloy
- Diameter Max
- 1.328 in
- Height
- 2.85 in
- Bolt Circle Diameter
- 5.00 in
- Hardware Type
- Cap mounting kit (w/o nuts)
- One Wrench Installation
- Yes
- Certification - UL Recognized
- No
- Certification - CSA Approved
- No
- Application
- Substation
- Connector Type
- Bus Support Spacer
Number of Conductors2
Rating - KVA550 kV
Fitting TypeSlip or Rigid
MaterialCast Aluminum
Width6.25 in
Diameter Min1.246 in
Hole Size11/16 in (0.69 in)
Mounting Hardware5/8-11 x 1" GS
Number of Clamping Elements1
Certification - UL ListedNo
Certification - cULusNo
Standards - RoHS Compliance StatusUnknown
Item Type4D
