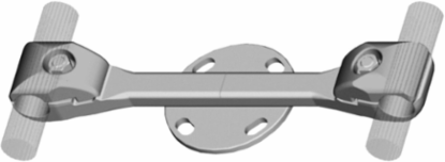

Burndy SH2GBP46A512 Cast Aluminum Bus Support Spacer 12 Inch, 1590-1600 kcmil, 2 Conductor
- MPN: SH2GBP46A512
- UPC: 781810257531
- PPN: BUR-26000170
CAD
$1128.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Aluminum Bus Support 12 IN Spacer, 1590 kcmil-1600 kcmil AAC, 1272 (54/19) kcmil -1431 (54/19) kcmil ACSR
Specifications
Additional
| Number of Conductors | 2 |
|---|---|
| Length Overall | 12.00 in |
| Diameter Max Size | 1.504 in |
| Height | 2.88 in |
| Mounting Hardware | 5/8-11 x 1" GS |
| Connection Combination | Base to Cable |
| Certification - UL Recognized | No |
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Application | Substation |
| Connector Type | Bus Support Spacer |
| Wire Size Range | 1590-1600 kcmil, 1272-1431 kcmil |
|---|---|
| Bolt Circle Diameter | 5.00 in |
| Width | 6.25 in |
| Material | Aluminum Alloy, Cast |
| Hardware Type | Cap mounting kit (w/o nuts) |
| Plating Type | Unplated |
| Certification - ETL | No |
| UL Listed | No |
| RoHS Compliance | CM |
| One Wrench Installation | Yes |
| Fitting Type | Slip or Rigid |
