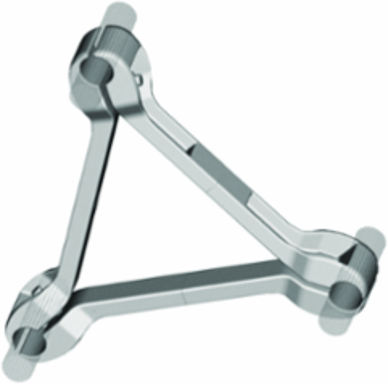

Burndy S3GBP48A13GS 3 Conductor 13 Inch Spacer, 1750-2000 kcmil AAC, 1590-1750 kcmil ACSR
- MPN: S3GBP48A13GS
- UPC: 781810529362
- PPN: BUR-30011816
CAD
$1009.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Three Conductor 13 IN Spacer, 1750 kcmil-2000 kcmil AAC, 1590(45/7) kcmil-1750(84/19) kcmil ACSR
Documentation & Downloads
Specifications
Additional
| Rating - KVA | 550 kV |
|---|---|
| Conductor - AL Str Size Range | 1750 kcmil-2000 kcmil |
| Dimension - Length Overall inch | 15.69 in |
| Dimension - B Length inch | 3.00 in |
| Spacer Length | 13 in |
| Plating Type | Unplated |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Item Type | 4D |
| Conductor Count | 3 |
|---|---|
| Conductor - ACSR Str Size Range | 1590 (45/7) kcmil-1750 (84/19) kcmil |
| Dimension - Height inch | 13.89 in |
| Dimension - L Length Overall mm | 399 mm |
| Material | Aluminum Alloy |
| Connector Type | Spacer |
| Certification - cULus | No |
| Certification - CSA Approved | No |
| UL Listed | No |
| Application | Substation |
