Burndy NA182N Cast Copper Alloy Bolted Terminal, 2" IPS, 2 NEMA Pad Holes, 9/16" Hole Diameter
- MPN: NA182N
- UPC: 781810002483
- PPN: BUR-02001726
CAD
$530.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Copper Alloy Bolted Terminal, Cu Tube To Flat, 2" IPS, 2-NEMA Pad Holes, .56" Hole Dia
Documentation & Downloads
Specifications
Key Specifications
- Application
- Substation
- Connector Type
- Terminal
- Material
- Copper Alloy
- One Wrench Installation
- Y
- Physical Attribute - Pad Alignment
- Offset
- Plated
- N
- UPC
- 781810002483

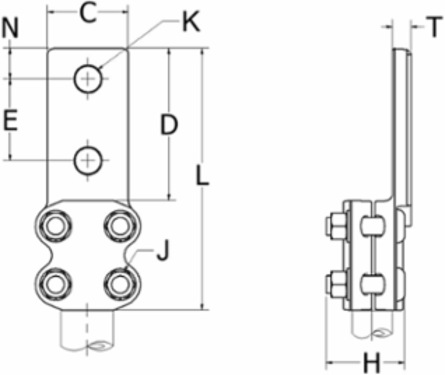

- Dimension - B Length inch
- 2.69 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Length Overall inch
- 5.94 in
- Dimension - Pad Width inch
- 2.75 in
- Dimension - Width mm
- 117 mm
- Conductor - Connection Combination
- Tube to Flat
- Conductor - Copper Tube EH Size Range
- 2 IPS
- Conductor - Copper Tube Std Size Range
- 2 IPS
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Clamping Element DesignBody and Cap
Item Type4D
Material - HardwareDURIUM™ Silicon Bronze
Physical Attribute - Number of Holes2
Physical Attribute - Pad Configuration2.75 x 3 - 2 holes
Plating TypeUnplated
UPC 12 Digit7818100024833
Dimension - D inch3.00 in
Dimension - Height inch3.12 in
Dimension - L Length Overall mm151 mm
Dimension - N inch0.62 in
Dimension - Width inch4.62 in
Rating - KVA230 kV
Conductor - Copper Tube EH Size2 IPS
Conductor - Copper Tube Std Size2 IPS
Number Of Conductors1
Certification - ETLNo
Certification - cULusNo
UL ListedNo
