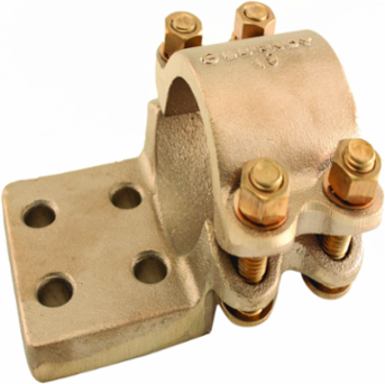

Burndy NA162N Tube to Flat Bolted Terminal, 1-1/4 Inch IPS, 2 Pad Holes, Copper Alloy
- MPN: NA162N
- UPC: 781810002452
- PPN: BUR-02001710
CAD
$870.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cast Copper Alloy Bolted Terminal, Cu Tube To Flat, 1-1/4" IPS, 2-NEMA Pad Holes, .56" Hole Dia
Documentation & Downloads
Specifications

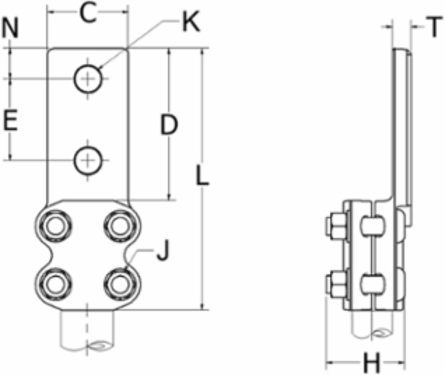

Dimensions
- Dimension - B Length inch
- 2.69 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height inch
- 2.56 in
- Dimension - L Length Overall mm
- 151 mm
- Dimension - N inch
- 0.63 in
- Dimension - Width inch
- 3.50 in
Dimension - D inch3.00 in
Dimension - Height fraction2-5/8
Dimension - Hole Size fraction9/16
Dimension - Length Overall inch5.94 in
Dimension - Pad Width inch2.25 in
Dimension - Width mm89 mm
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Connection Combination
- Tube to Flat
- Conductor - Copper Tube EH Size Range
- 1 1/4 IPS
- Conductor - Copper Tube Std Size Range
- 1 1/4 IPS
Conductor - Copper Tube EH Size1 1/4 IPS
Conductor - Copper Tube Std Size1 1/4 IPS
Number Of Conductors1
General
- Application
- Substation
- Connector Type
- Terminal
- Material - Hardware
- DURIUM™ Silicon Bronze
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Pad Configuration
- 2.25 x 3 - 2 holes
- Plating Type
- Unplated
- UPC 12 Digit
- 7818100024522
Clamping Element DesignBody and Cap
MaterialCopper Alloy
One Wrench InstallationY
Physical Attribute - Pad AlignmentOffset
PlatedN
UPC781810002452
Electrical Ratings
- Rating - KVA
- 230 kV
Logistics
- Minimum Pack Quantity
- 6
