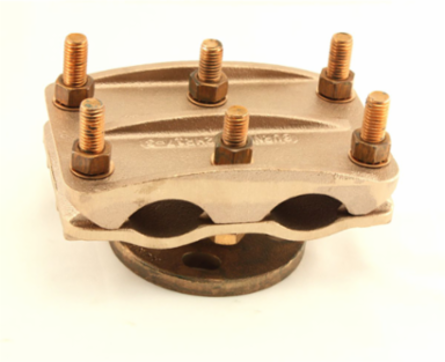

Burndy U2HR153 Copper Bus Connectors, Two 1/4 Inch to 1 Inch Tube, 4/0 AWG to 1250 kcmil Capacity
- MPN: U2HR153
- UPC: 781810168868
- PPN: BUR-25014194
CAD
$837.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Bus Connectors, Two 1/4 IN to 1 IN CU TUBE, Two 4/0 STR. To 1250 kcmil CU Cable
Documentation & Downloads
Specifications
Dimensions
- Bolt Circle Diameter
- 3.00 in
- Dimension - G inch
- 2.00 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - L Length Overall mm
- 95 mm
- Dimension - Width inch
- 4.75 in
Dimension - B Length inch3.75 in
Dimension - Height inch3.50 in
Dimension - Hole Size inch0.56 in
Dimension - Length Overall inch3.75 in
Dimension - Width mm121 mm
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Connection Combination
- Base to Tube or Cable
- Conductor - Copper Str Size Range
- 4/0 AWG-1250 kcmil
- Conductor - Copper Tube Std Size Range
- 1/4 IPS-1 IPS
- Number Of Conductors
- 2
Conductor - Copper Str Size4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil;1250 kcmil
Conductor - Copper Tube Std Size1/4 IPS IPS;3/8 IPS IPS;1/2 IPS IPS;3/4 IPS IPS;1 IPS IPS
Conductor Spacing2 in
General
- Application
- Substation
- Fitting Type
- Rigid Conduit
- Item Type
- 4D
- Material - Hardware
- Silicon Bronze
- One Wrench Installation
- Y
- Plating Type
- Unplated
- UPC
- 781810168868
Connector TypeBus Support
Hardware TypeCap mounting kit (w/o nuts)
MaterialCopper Alloy, Cast
Mounting Hardware1/2-13 x 1" GS
PlatedN
TypeCable or Tube to Insulator Bus Supports
UPC 12 Digit7818101688688
Electrical Ratings
- Rating - KVA
- 230 kV
