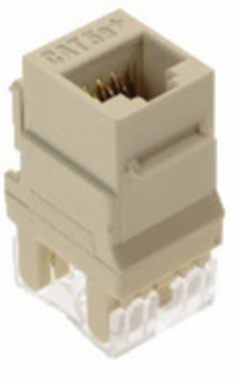

On-Q WP3450-LA Category 5e RJ45 Keystone Connector, Light Almond

MPN: WP3450-LA
UPC: 804428024866
PPN: P-S-WP3450LA

$7.13

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The vertical design of this high quality insert makes punchdown termination easy. The insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs.

Features

High quality insert for use in multimedia wallplates
Rear retention caps ensure secure wire termination
Vertical design for easy punchdown termination
T568A and T568B wiring labels included
Meets Category 5e described in TIA/EIA-568-B.2
Insertion and extraction life is 750 Cycles Min
Jack housing is high-impact, flame resistant plastic, UL 94V-0
Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Also available in contractor pack of 50 (WP3450-LA-50)

Specifications

Dimensions

Height (US)	0.87"
Width (US)	0.64"

Length (US)	1.28"
Product Weight (US)	0.0255 lb

Listing Agencies/Third Party Certifications

RoHS	Yes
UL Listing No	ANSI/UL 1863; CAN/CSA-C22.2 No. 182.4-1990

cULus	Yes

General Info

Color	Light Almond
Number Of Ports	1
Termination	IDC Wire Guage

Mod Jack Wiring	T568A or T568B
Pair Count	4

Technical Information

Humidity	Max 93% non-condensing
Mounting	Keystone

Material	High Impact Plastic
Storage Temperature	Neg 40°F to 158°F

Category 5e RJ45 Keystone Connector, Light Almond
