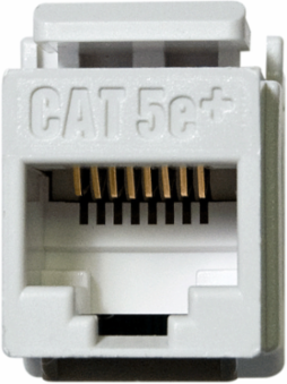

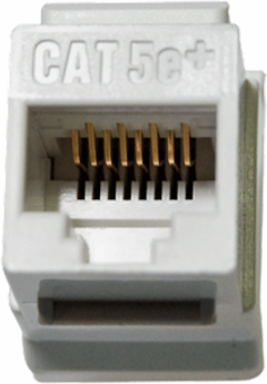

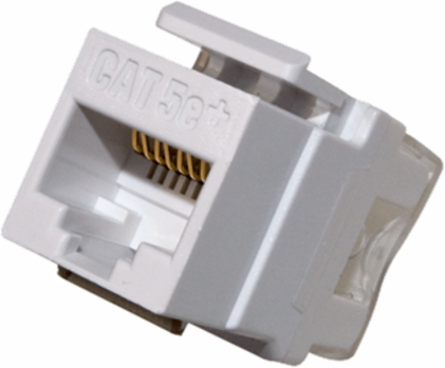

On-Q WP3450-WH Category 5e RJ45 Keystone Connector, White
- MPN: WP3450-WH
- UPC: 804428024873
- PPN: P-S-WP3450WH
CAD
$7.13
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The vertical design of this high quality insert makes punchdown termination easy. The insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs.
Features
- High quality insert for use in multimedia wallplates
- Rear retention caps ensure secure wire termination
- Vertical design for easy punchdown termination

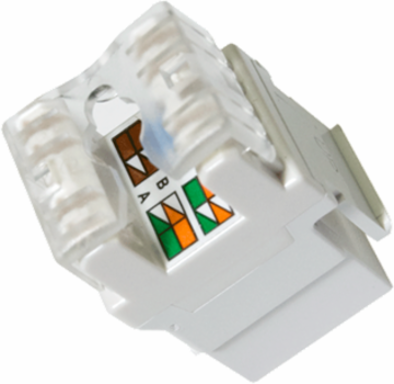

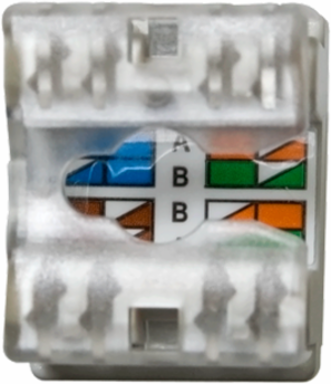

- T568A and T568B wiring labels included
- Meets Category 5e described in TIA/EIA-568-B.2
- Insertion and extraction life is 750 Cycles Min
- Jack housing is high-impact, flame resistant plastic, UL 94V-0
- Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
- Also available in contractor pack of 50 (WP3450-WH-50)
Documentation & Downloads
Specifications
Additional
- Category
- 5e
- Mod Jack Wiring
- T568A or T568B
- Length
- 1.28 in.
- Height
- 0.87 in.
- Color
- White
- RoHS
- Yes
- UL Listing No
- ANSI/UL 1863; CAN/CSA-C22.2 No. 182.4-1990
- Storage Temperature
- -40 F to 158 F
- Insertion and Extraction Life
- 750 Cycles Min
- Country of Origin
- Taiwan, Province of China
Pair Count4
TerminationIDC Wire Gauge, Punchdown
Width0.64 in.
MaterialHigh Impact Plastic; Phosphor bronze, gold and nickel plated contacts
MountingKeystone
cULusYes
ComplianceCSA
HumidityMax 93% non-condensing
Jack Housing MaterialHigh-impact flame resistant plastic UL 94V-0
Environmental Conditions0 to 93% relative humidity, non-condensing
