Documentation & Downloads
nVent Caddy CAT48HP58 nVent CADDY Cat HP J-Hook with Hammer-On Flange Clip, Swivel, 3" dia, 5/16"–1/2" Flange
- MPN: CAT48HP58
- UPC: 782856803195
- PPN: CAD-CAT48HP58
- UNSPSC: 39131709
CAD
$24.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

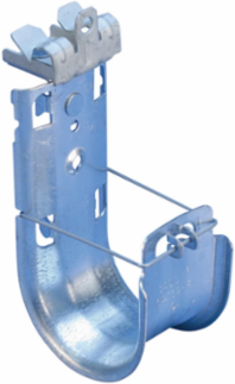

nVent CADDY Cat HP J-Hook with Hammer-On Flange Clip, Swivel, 3" dia, 5/16"–1/2" Flange
Features
- Requires only a hammer to install

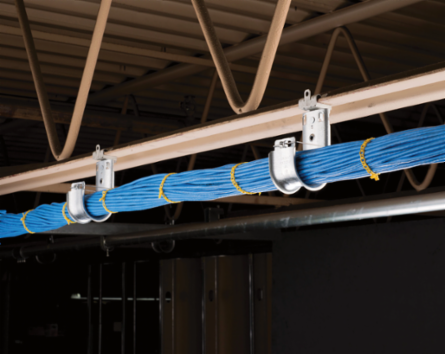

- Rotates 360 degrees to support various directional runs of cable
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Cost effective alternative to expensive cable tray
- Complies with EN 50174-2
- Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Finish
- Pregalvanized
- Area
- 5,974
- Cable Capacity, Cat 6
- 150
- Flange Thickness (FT)
- 8
- Static Load
- 270
MaterialSteel
Diameter (Ø)75
Cable Capacity, Cat 5e200
Cable Capacity, Cat 6A80
Static Load (F)60
Sub BrandCADDY
