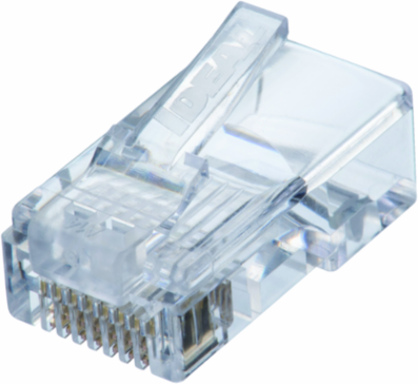

Ideal Industries 85-372J CAT5e Feed-Thru RJ-45 Modular Plug, 8 Position, 100 Pack
- MPN: 85-372J
- UPC: 783250804382
- PPN: IDL-85-372J
CAD
$102.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CAT5e Feed-Thru Modular Plugs -100 jar NEW Feed-Thru design simplifies connector to cable assembly Flush cut of excess conductors minimzes inadvertent contact outside of the plug Designed for best performance when used with the IDEAL FT-45™ Crimp Tool
Features
- Flush cut of excess conductors minimzes inadvertent contact outside of the plug
- Designed for best performance when used with the IDEAL FT-45™ Crimp Tool (30-495)
- Optional external strain relief boots are available.
- As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below - eliminates short wires or opens.
- Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports.
- Permanent connection - once crimped they cannot be reused.
- Conductor order can then be verified before the connector is crimped. This elimates wasted connectors, saves time in assembly, and reduces the chances of finding an error during a wiremap test of the cable.
- Feed-Thru 8 position, 8 contact RJ-45 modular plug for CAT5e, 100Ω balanced twisted pair 100 MHz cables.
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100Ω balanced twisted pair 250 MHz cables
- Single piece connector, no special assembly or multiple pieces simplify the modular plug assembly process - no measuring or exact cutting required.
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles.
- Designed to work seamlessly with IDEAL FT-45™ Modular Plug Crimp Tool. Also compatible for crimping (no cutting of conductors) in the IDEAL Telemaster™ crimping tools.
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" in diameter.
- NEW Feed-Thru design simplifies connector to cable assembly
- Accepts outer jacket cable diameters of up to .270".
- The cable can be pushed or pulled into the connector to ensure that the twisted pairs are within 1/2" of the pin contacts and that the jacket is seated beyond the primary strain relief for a secure connection-better NEXT performance, minimal untwisted wires.
- Primary and secondary strain relief supports to retain cable jacket and minimize conductor movement once crimped.
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- The NEW IDEAL Feed-Thru CAT5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.
