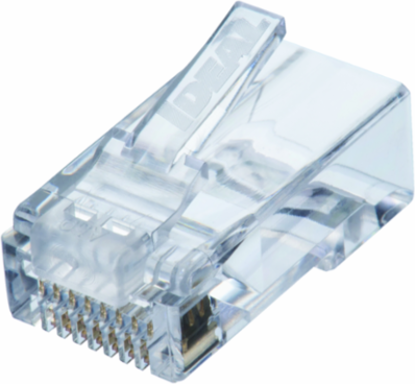

Ideal Industries 85-377J CAT6 Feed-Thru Modular Plugs, 8 Position RJ-45, 100 Count
- MPN: 85-377J
- UPC: 783250804399
- PPN: IDL-85-377J
CAD
$114.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CAT6 Feed-Thru Modular Plugs -100 jar NEW Feed-Thru design simplifies connector to cable assembly Flush cut of excess conductors minimzes inadvertent contact outside of the plug Designed for best performance when used with the IDEAL FT-45™ Crimp Tool
Features
- 8 position, 8 contact RJ-45 modular plug for CAT6, 100Ω balanced twisted pair 250 MHz cables
- Designed for best performance when used with the IDEAL FT-45™ Crimp Tool (30-495)
- Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports.
- The cable can be pushed or pulled into the connector to ensure that the twisted pairs are within 1/4" of the pin contacts and that the jacket is seated beyond the primary strain relief for a secure connection-better NEXT performance, minimal untwisted wires.
- CAT6 single piece connector, no special assembly or sled & liner required help to simplify the assembly process - no measuring or exact cutting required. Same assembly as CAT5e Feed-Thru, just remove the cable spline if present.
- Designed to work seamlessly with IDEAL FT-45™ Modular Plug Crimp Tool. Also compatible for crimping (no cutting of conductors) in the IDEAL Telemaster™ crimping tools.
- Accepts outer jacket cable diameters up to .280"
- Conductor order can then be verified before the connector is crimped. This elimates wasted connectors, saves time in assembly, and reduces the chances of finding an error during a wiremap test of the cable.
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles.
- NEW Feed-Thru design simplifies connector to cable assembly
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Permanent connection - once crimped they cannot be reused
- Primary strain relief support retains cable jacket and minimizes conductor movement once crimped.
- The IDEAL Feed-Thru CAT6 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.
- Optional external strain relief boots are available.
- Feed-Thru 8 position, 8 contact RJ-45 modular plug for 23 AWG CAT6, 100Ω balanced twisted pair 250 MHz cables. Compatible with most 24 AWG CAT5e cables as well.
- As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below - eliminates short wires or opens.
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" in diameter.
- Flush cut of excess conductors minimzes inadvertent contact outside of the plug
