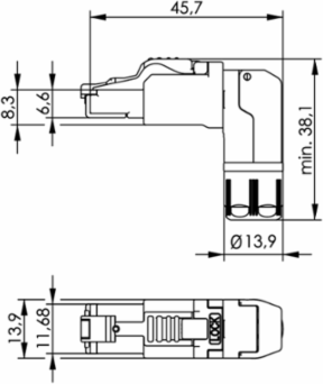

Weidmuller 1518100000 IE-PS-RJ45-FH-90-P-1.6
Weidmuller 1518100000 IE-PS-RJ45-FH-90-P-1.6
- MPN: 1518100000
- PPN: WDM-1518100000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$37.91/ EA
Description

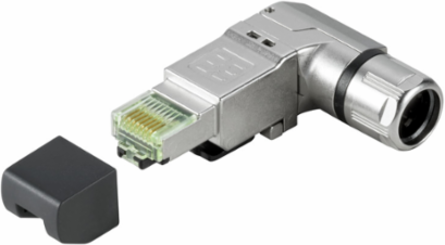

RJ45 plug, no tools required, angled, 4x90°, Cat.5 (ISO/IEC 11801), PROFINET
Specifications
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation strength
- > 500 MΩ
Current-carrying capacity at 50 °C1 A
Dielectric strength, contact / shield≥ 1500 V DC
PoE / PoE+conforming to IEEE 802.3at
General Data
- Connection 1
- RJ45
- Wiring
- PROFINET
- Speed
- 100 MBit
- Insulation cross-section, max.
- 1.6 mm
- Contact surface
- Gold over nickel
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Conductor connection cross-section, flexible (AWG)
- AWG 27...AWG 22
- Conductor connection cross-section, extremely flexible (AWG)
- AWG 24...AWG 22, Approval of the cable by Weidmüller necessary
- Sheath diameter, max.
- 9 mm
- Protection degree
- IP20
Connection 2Piercing
Housing main materialZinc diecast, nickel-plated
Insulation cross-section, min.1.1 mm
CategoryCat.5 (ISO/IEC 11801)
Connection diameter, solid0.51...0.64 mm
Connection diameter, flexible0.46...0.76 mm
Conductor connection cross-section, extremely flexible0.61...0.78 mm, Approval of the cable by Weidmüller necessary
Sheath diameter, min.5 mm
Shielding360° all-round enclosure
Plugging cycles750
Approvals
- Approvals
- CULUS, DNV GL
- UL File Number Search
- E471884
ROHSConform
Dimensions And Weights
- Net weight
- 30 g
Standards
- Connector standard
- IEC 60603-7-51
Certificate no. (cULus)E471884
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-90
- eClass 10.0
- 27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-03-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature
- -40 °C...85 °C
Operating temperature, min.-40 °C
Downloads
