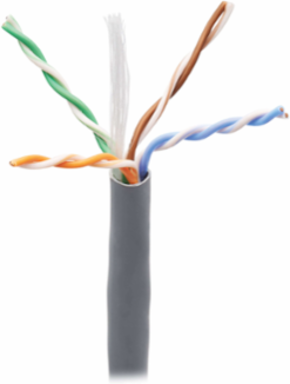

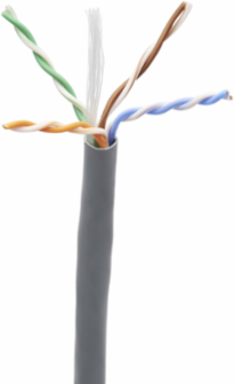

Tripp Lite N224-01K-GY-LP5 Cat6 Ethernet Cable 1000 ft, CMP-LP 0.5A Plenum, 100W PoE, Solid 23 AWG
- MPN: N224-01K-GY-LP5
- UPC: 037332247957
- PPN: TRP-N224-01K-GY-LP5
CAD
$972.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cat6 Ethernet Cable 1000 ft, CMP-LP 0.5A Plenum, 100W PoE, Solid 23 AWG
Features
- UL-listed CMP-LP (0.5A) plenum-rated jacket certified for PoE++ and high-power PoE
- Recommended for horizontal premise installations in air ducts and drop ceilings
- 23 AWG 4-pair solid copper cable rated for 550 MHz/1 Gbps Ethernet speeds

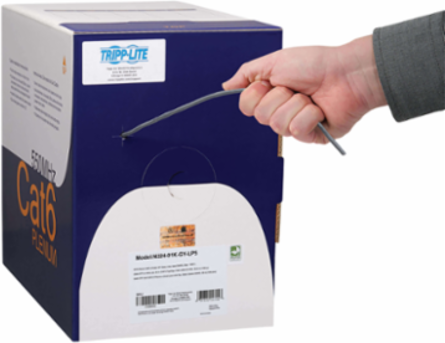

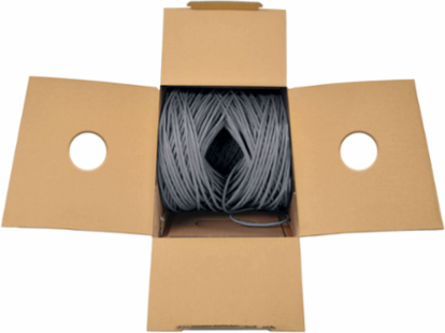

- Bulk pack of 1000 ft. cable comes in gray for custom color-coded applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Premium High-Speed Cat6 Cable for Gigabit Ethernet Premise Applications
- Designed for PoE++ and High-Power PoE Applications
Specifications
Additional
- PoE Power Budget
- 100W
- Operating Temperature Range
- -4 to 167 °F (-20 to 75 °C)
- Cable Length
- 1000 ft (12000 in, 30480 cm)
- Wire Gauge
- 23 AWG
- Material
- PVC
- Cable Jacket Type
- CMP; PVC
- Wire Type
- Solid
- PoE Type
- Type 3 PoE++/UPoE (60W, IEEE 802.3bt); Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at); Type 4 High-Power (100W, IEEE 802.3bt)
- Certifications
- RoHS, REACH, UL
- Side B Connector
- Bare Wire
- UPC Code
- 037332247957
Network Speed1 Gbps
Storage Temperature Range32 to 140 °F (0 to 60 °C)
Number of Conductors8
Cable Outer Diameter0.205 in
Cable Jacket RatingCMP-LP5
Cable ShieldingUTP
TechnologyCat6; PoE
IEEE Standards Supported802.3ab; 802.3af; 802.3at; 802.3bt
Side A ConnectorBare Wire
ColorGray
