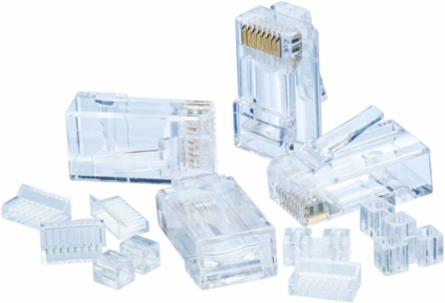

Ideal Industries 85-366 CAT6 RJ-45 8P8C Modular Plugs, 250 MHz, 25 Pack
- MPN: 85-366
- UPC: 783250853663
- PPN: IDL-85-366
CAD
$40.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CAT6 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 250 MHz and up to 350 MHz for patch cord lengths. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster™ and FT-45™ series of modular plug crimp tools. Plugs are designed and manufactured to support all 100Ω cable wiring schemes including the widely used TIA-568A and TIA-568B configurations.
Features
- 8 position, 8 contact RJ-45 modular plug for Cat 6, 100Ω balanced twisted pair 250 MHz cables
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
- Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports
- Designed to work seamlessly with IDEAL Telemaster™ crimping tools. Also compatible with industry standard modular plug crimping tools meeting specifications.
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors
- 8 position, 8 contact RJ-45 modular plug for CAT6, 100Ω balanced twisted pair 250 MHz cables
- 3 piece connector design allows proper pair twist ratio in the connector body and simplifies the assembly process
- Designed to work seamlessly with IDEAL Telemaster™ and FT-45™ crimping tools. Also compatible with industry standard modular plug crimping tools meeting specifications.
- Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" diameter. Cable jacket diameter of up to .280".
- Permanent connection - once crimped they cannot be reused
- Primary strain relief support to retain cable jacket and minimize conductor movement once crimped
- Non feed through design to prevent external conductor/device shorting and RF signal leakage
