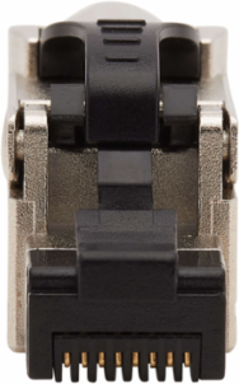

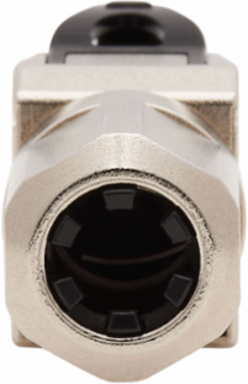

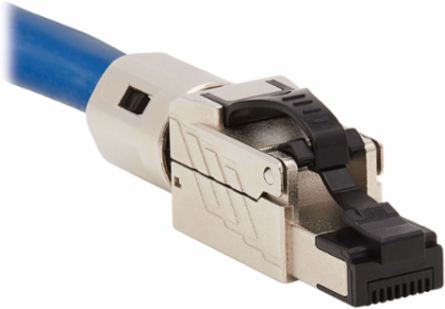

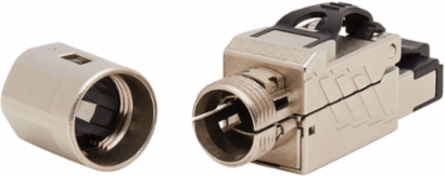

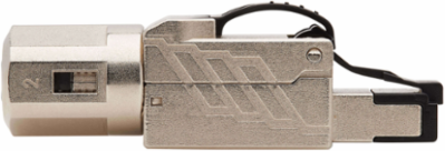

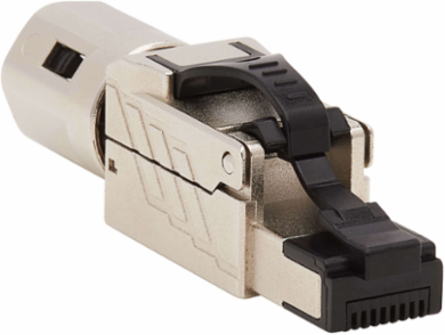

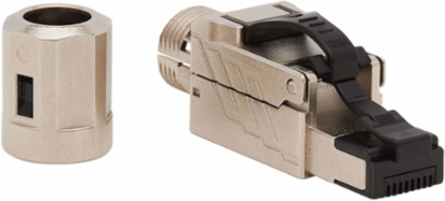

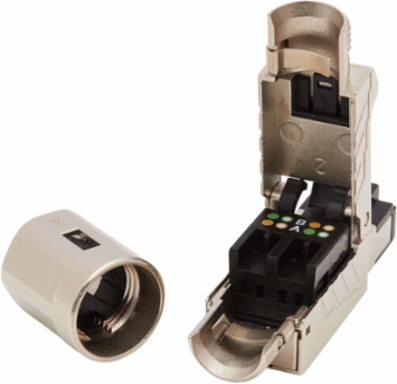

Tripp Lite N238-P01-MPTL-A Cat6a RJ45 Plug - MPTL, Shielded, 100W High-Power PoE & PoE++, Zinc Die-Cast, Black, TAA
Tripp Lite N238-P01-MPTL-A Cat6a RJ45 Plug - MPTL, Shielded, 100W High-Power PoE & PoE++, Zinc Die-Cast, Black, TAA
- MPN: N238-P01-MPTL-A
- UPC: 037332247926
- PPN: TRP-N238-P01-MPTL-A
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$26.90/ EA
Description
Cat6a RJ45 Plug - MPTL, Shielded, 100W High-Power PoE & PoE++, Zinc Die-Cast, Black, TAA
Features
- Designed for fast, reliable field terminations with no special tools in PoE applications
- Supports PoE++ and high-power PoE to save you expense of powering PoE devices individually
- Accommodates 22–26 AWG solid or stranded cabling in 6.5–8.5 mm diameters
- Versatile and durable die-cast zinc plug can be re-terminated as many as 20 times
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- RJ45 Cat6a Plug Designed for Field Installation in Above-Ceiling Applications
- Delivers Type 3 and Type 4 Power over Ethernet to Security Cameras and Other PoE Devices
- Assembles Easily with No Special Tools Required
- TAA-Compliant for GSA Schedule Purchases
Specifications
Features & Specifications
- Recommended Category Cable
- CAT6A
- DC Current Rating
- 1.5A
TechnologyCat6a; PoE
Cable CompatibilityAccommodates 22 to 26 AWG Solid or Stranded Cabling
Connections
- Side A - Connector 1
- RJ45 (MALE)
- PoE Capability
- 100W (802.3bt); 15.4W (802.3af); 30W (802.3at); 60W (802.3bt)
- PoE Type
- Type 4 High-Power (100W, IEEE 802.3bt)
Side B - Connector 1110 IDC
PoE Power Budget (Watts)100
Physical
- Cable Outer Diameter (OD)
- 6.5mm to 8.5mm
- Unit Dimensions (hwd / in.)
- 0.77 x 0.59" x 2.3"
ColorBlack
Input
- Plug Type
- RJ45
Environmental
- Operating Temperature Range
- 14 ~ 140F (-10 ~ 60C)
- Relative Humidity
- 10% ~ 90% RH (Non-Condensing)
Storage Temperature Range-40 ~ 154F (-40 ~ 68C)
Overview
- UPC Code
- 037332247926
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Downloads
