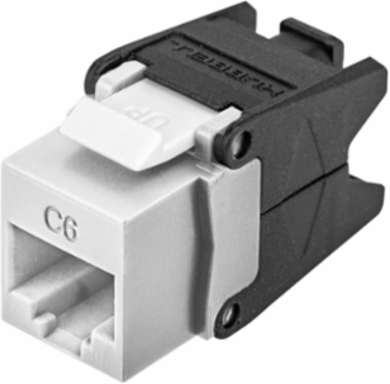

Hubbell Premise Wiring HJU6W24 Category 6 Jack RJ45 with Cobra-Lock™ Termination, Up to 5GBASE-T Performance
- MPN: HJU6W24
- UPC: 662620669694
- PPN: HBL-HJU6W24
- UNSPSC: 39121444
CAD
$529.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NEXTSPEED® Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6 performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® Category 6 jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Additional
- Performance
- Up to 5GBASE-T, 802.3bt PoE, TIA Cat 6 Component Verified
- Operating Cycles
- 750+ Plug Mating & 25 IDC Re-termination Cycles
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- IDC Contact Material
- Phosphor Bronze with 100 Micro-inch Tin Over Plating
- Standards
- ANSI/TIA/EIA-568 Category 6, UL 1863, UL 2043, RoHS, IEC60512-99-002 PoE Disconnection Endurance
- Color
- White
- Series
- Cobra-Lock™ Series
Withstand Voltage1000 Vac @ 60 Hz
Dimensions0.87 x 0.67 x 1.39 in (22 x 17 x 35 mm)
TerminationCobra-Lock
Wire Compatibility24-22 AWG Solid
Contact Point MaterialCopper Alloy with Gold Over Plating
Environmental ConditionsIndoor Dry Unless Protected
Temperature Rating-40° C to 75° C Continuous
Country of OriginTW
