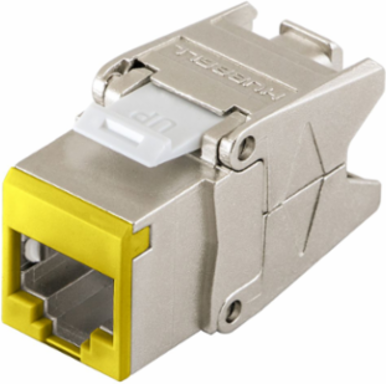

Hubbell Premise Wiring HJS6Y Category 6 Shielded Jack, Cobra-Lock Termination, 3.500 Inch Width

MPN: HJS6Y
UPC: 662620662145
PPN: HBL-HJS6Y
UNSPSC: 39121444

$22.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NEXTSPEED® Shielded Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® shielded provides the highest level of reliability in the industry with added protection against external noise and EMI.

Features

Third Party Verified Category 6 Component
Cobra-Lock™ Termination Reduces Termination Time by Over 75%
Wires Secured Under Constant Compression
Easily Re-Terminate
Qualified to 150% of 802.3bt PoE Current Level
Cobra-Lock™ Termination

Specifications

Additional

Industry Standard(s)	ANSI/TIA/EIA-568 Category 6 component; UL 1863; IEC60512-99-002 POE Disconnection Endurance; UL 2043; RoHS Compliant
Performance	TIA Cat 6 Component, Third Party Verified, TIA Component Compliant
IDC Re-termination Cycles	25 Maximum
PoE Support	IEC60512-99-002 3rd Party Tested
Temperature Rating	-40 to 75 C
Width	3.500 in
Style	RJ-45 Jack
Contact Point Material	Copper Alloy with Gold Over Plating
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
Country of Origin	TW
Sub Brand	Cobra-Lock

Withstand Voltage	1,000 Vac @ 60 Hz
Plug Mating Cycles	750 Minimum
Wire Compatibility	24-22 AWG Solid
Backward Compatibility	Cat5e and Cat6
Size / Dimensions	0.87 x 0.67 x 1.39 in (22 x 17 x 35 mm)
Mounting Type	Snap-fit
Material - Housing	Diecast Zinc
IDC Contact Material	Phosphor Bronze with 100 micro-inch Tin Over Plating
Color	Yellow
Series	Cobra-LockTM Series
