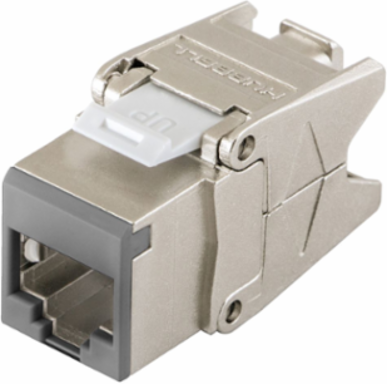

Hubbell Premise Wiring HJS6GY24 Category 6 Shielded Jack Cobra-Lock™ 0.87 x 0.67 x 1.39 Inch
Hubbell Premise Wiring HJS6GY24 Category 6 Shielded Jack Cobra-Lock™ 0.87 x 0.67 x 1.39 Inch
- MPN: HJS6GY24
- UPC: 662620662268
- PPN: HBL-HJS6GY24
- UNSPSC: 39121444
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$476.54/ EA
Description
NEXTSPEED® Shielded Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® shielded provides the highest level of reliability in the industry with added protection against external noise and EMI.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
- Electrical Rating
- 1000 Vac @ 60 Hz Withstand Voltage
- Operating Cycles
- 750 Plug Mating Minimum, 25 IDC Re-termination Maximum
- Size
- 0.87 x 0.67 x 1.39 in (22 x 17 x 35 mm)
- Connection Type
- RJ45 Jack to Cobra-Lock Modular Jack
- Contact Material
- IDC: Phosphor Bronze with 100 µin Tin Plating, Nose Contacts: Copper Alloy with Gold Over Plating
- Color
- Gray
- Series
- Cobra-Lock™ Series
PerformanceTIA Cat 6 Component, Third Party Verified, TIA Component Compliant, PoE Qualified to 150% of 802.3bt Current Level
Temperature Rating-40°C to 75°C Continuous Without Impact
Mounting TypeSnap-fit
Material - HousingDiecast Zinc
ComplianceANSI/TIA/EIA-568 Category 6, UL 1863, UL 2043, RoHS Compliant
Country of OriginTaiwan
