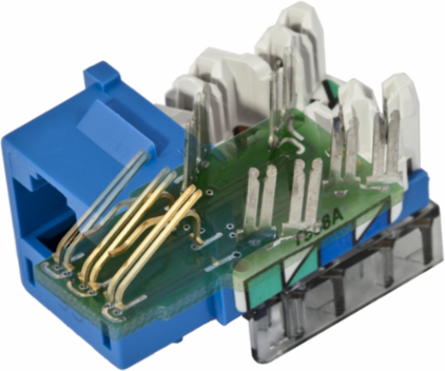

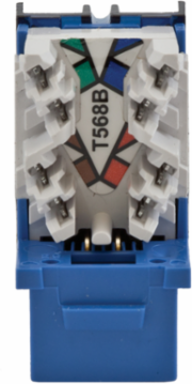

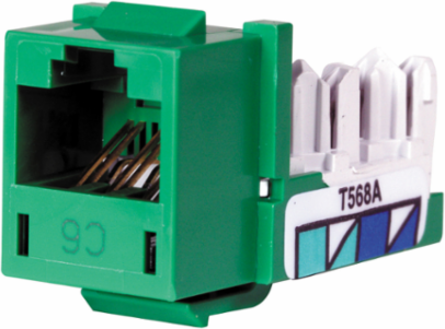

Hubbell Premise Wiring HXJ6GN24 XCELERATOR Cat 6 Telephone/Data Jack, Standard Size, 0.86 x 0.67 x 1.29 Inch
Hubbell Premise Wiring HXJ6GN24 XCELERATOR Cat 6 Telephone/Data Jack, Standard Size, 0.86 x 0.67 x 1.29 Inch
- MPN: HXJ6GN24
- UPC: 662620663838
- PPN: HBL-HXJ6GN24
- UNSPSC: 39121444
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$295.34/ EA
Description
Telephone/Data, Jack, XCELERATOR, Cat 6
Features
- Third Party Verified Category 6 Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
- Performance
- TIA Cat 6 Component, Third Party Verified; Data Rate 4+ Gbps within 1-250 MHz; Frequency Capacity beyond 300 MHz; PoE Qualified to 150% of 802.3bt Current; Contact Resistance 100 Ohm
- Operating Cycles
- 2000 Plug, 10x IDC Termination
- Temperature Rating
- -40° C to 75° C Max Continuous
- Width
- 5.5 in
- Material - IDC Contact
- Phosphor bronze with 100 micro-inch tin lead 60/40 plating over nickel
- Material - Stuffer Cap
- Lexan (UL 94V-0)
- Mounting Type
- Snap-fit
- Application
- Up to 5GBASE-T, 802.3bt POE
- Operating Environment
- Indoor Dry Unless Protected
- Series
- XCELERATOR™ Series
Withstand Voltage1,000 Vac @ 60 Hz
Keystone Latching Force25 lbs.
Size0.86 x 0.67 x 1.29 in (22 x 17 x 33 mm)
Material - Nose ContactBeryllium copper with precious metal plating over nickel
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Material - Mounting HardwareKeystone
StandardANSI/TIA/EIA-568 Cat 6; UL 1863; IEC60512-99-002 POE Disconnection Endurance; UL 2043 Air-Handling Spaces; RoHS Compliant
ColorGreen
Country of OriginPR
