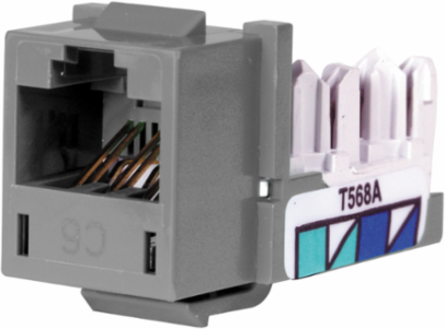

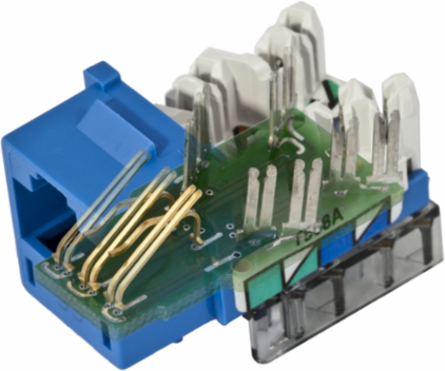

Hubbell Premise Wiring HXJ6GY24 XCELERATOR Cat 6 Telephone/Data Jack, 0.86 x 0.67 x 1.29 Inch, Indoor Use
- MPN: HXJ6GY24
- UPC: 662620663845
- PPN: HBL-HXJ6GY24
- UNSPSC: 39121444
CAD
$331.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Telephone/Data, Jack, XCELERATOR, Cat 6
Features
- Third Party Verified Category 6 Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Additional
| Application | Up to 5GBASE-T, 802.3bt PoE, Positive PSACR beyond 300 MHz, 4+ Gbps capacity |
|---|---|
| Operating Cycles | 2000 Plug |
| Mounting Type | Snap-fit |
| Material - Housing | High-impact thermoplastic (UL 94 V-0) |
| Contact Material - IDC | Phosphor bronze with 100 micro-inch tin lead 60/40 plating over nickel under plating |
| Stuffer Cap Material | Lexan (UL 94 V-0) |
| Environmental Conditions | Indoor dry unless protected |
| Color | Gray |
| Series | XCELERATORTM Series |
| Withstand Voltage | 1,000 Vac @ 60 Hz |
|---|---|
| Size | 0.86 x 0.67 x 1.29 in. |
| Termination Type | 1-Punch, Quick-Lace |
| Contact Point Material | Beryllium copper with gold over plating |
| Housing Material | High-impact thermoplastic (UL 94 V-0) |
| Standard | ANSI/TIA/EIA-568 Category 6 component; UL 1863; IEC60512-99-002 POE Disconnection Endurance; UL 2043; RoHS Compliant |
| Keystone Latching Force | 25 lbs |
| Country of Origin | PR |
