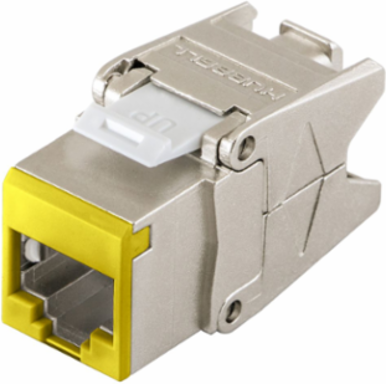

Hubbell Premise Wiring HJS6AY Category 6A Shielded RJ-45 Jack, Cobra-Lock Termination, 0.87 x 0.67 x 1.39 Inch
Hubbell Premise Wiring HJS6AY Category 6A Shielded RJ-45 Jack, Cobra-Lock Termination, 0.87 x 0.67 x 1.39 Inch
- MPN: HJS6AY
- UPC: 662620662220
- PPN: HBL-HJS6AY
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$25.98/ EA
Description
Ascent Shielded Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent shielded provides the highest level of reliability in the industry with added protection against ANEXT, external noise and EMI.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Specifications
- Country of Origin
- TW
- Width
- 3.540 in
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant;IEC60512-99-002 for de-matting endurance under PoE load
- Performance
- TIA Component Compliant
- Color
- Yellow
- Size
- 0.87 (22) x 0.67 (?17) x 1.39 (?35)
- Standard
- ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant;IEC60512-99-002 for de-matting endurance under PoE load
- Type
- Modular Jack
- Mounting Type
- Hubbell Keystone
- Class Code
- A60
- Harmonization Code
- 8536698000
- Sub Class Code
- A60A540
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 24
- Pallet - GTIN - Package
- 70662620662229
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions0.87 (22) x 0.67 (?17) x 1.39 (?35)
Each - Width3.540 in
Number of Pieces in Package1
ApplicationUp to 10GBASE-T, 802.3bt POE
MountingHubbell Keystone
Special FeaturesCobra-Lock™ Termination
Sub BrandCobra-Lock
Withstand Voltage1,000 Vac @ 60 Hz
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
SeriesCobra-Lock™ Series
BOX SIZE4.300x9.800x4.800 (in)
Carton - Number of Sub Packs24
Carton - SCC-14 Next Lower Level Sub Pack00662620662220
Case Weight11.350 lb.
Pallet Height46.500 in
Pallet Weight624.250 lb.
