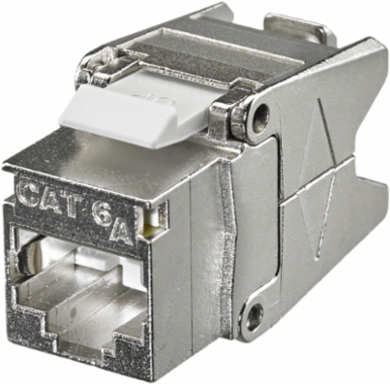

Hubbell Premise Wiring HJS6A Category 6A Shielded Jack RJ-45, 2.250 Inch Width, Cobra-Lock Termination
- MPN: HJS6A
- UPC: 662620662046
- PPN: HBL-HJS6A
- UNSPSC: 39121444
CAD
$29.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ascent Shielded Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent shielded provides the highest level of reliability in the industry with added protection against ANEXT, external noise and EMI.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Width
- 2.250 in
- Number of Pieces in Package
- 1
- Application
- Up to 10GBASE-T, 802.3bt POE
- Mounting
- Hubbell Keystone
- Special Features
- Cobra-Lock™ Termination
- Sub Brand
- Cobra-Lock
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, CAT6A, UNI, SHIELDED, CL
- Harmonization Code
- 8536698000
- Replaced Catalog Number
- SJ6A
- Series
- Cobra-Lock™ Series
- BOX SIZE
- 4.200x9.800x4.800 (in)
- Carton - Number of Sub Packs
- 24
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620662046
- Case Weight
- 11.150 lb.
- Pallet Height
- 47.000 in
- Pallet Weight
- 613.250 lb.
- NAICS Code
- 3342107206
Dimensions0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
Industry Standard(s)ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant;IEC60512-99-002 for de-matting endurance under PoE load
PerformanceTIA Component Compliant
ColorSilver
Size0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
StandardANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant;IEC60512-99-002 for de-matting endurance under PoE load
TypeModular Jack
Mounting TypeHubbell Keystone
Class CodeA60
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA60A540
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units24
Pallet - GTIN - Package70662620662045
Pallet Length48.000 in
Pallet Width40.000 in
