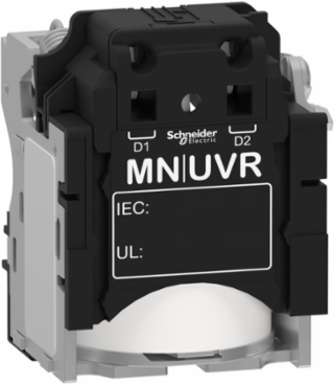

Square D P29408 Circuit breaker accessory, PowerPacT H/J/L, undervoltage trip, 380VAC to 480VAC
- MPN: P29408
- PPN: SCH-P29408
CAD
$1333.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This undervoltage trip unit is one of the available accessories for PowerPacT H/J/L circuit breakers. Trip units provide remote trip capability energized from a separate voltage source. This undervoltage trip unit requires 380VAC to 480VAC to energize trip coils and operate. Spring clamp connections make for easy installation. The units meet UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Rated Voltage
- 380-480 V DC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- undervoltage trip
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Listed
Local Publishable Date2025-11-13
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1807
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Tightening Torque1.4-1.4 N.m 0.82-2.5 mm² (18 AWG...14 AWG)
Package Weight(Lbs)0.454 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
General Attributes
- Range Of Product
- PowerPact H, PowerPact J, PowerPact L
Product Or Component Typeundervoltage trip
