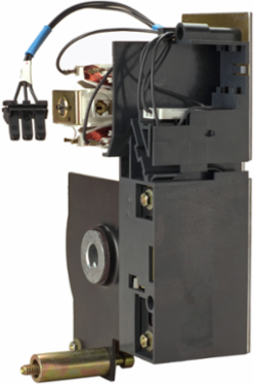

Square D S48211 MasterPact NW Spring Charging Motor 100-130 Volt AC
- MPN: S48211
- UPC: 785901942788
- PPN: SCH-S48211
CAD
$2199.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This spring charging motor from Schneider Electric is designed specifically for use with the MasterPact NW circuit breakers, providing reliable operation within a voltage range of 100-130 Volt AC. Its robust construction ensures efficient charging and enhances the performance of your power distribution system. Ideal for those looking to optimize the functionality of their circuit breakers, this accessory seamlessly integrates into existing setups, ensuring optimal reliability and safety in electrical management.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Complementary Attributes
- Rated Voltage
- 100-130 V AC
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.24244104, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.370765686, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.084016
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Circuit Breaker Type
- Y-frame
- Device Short Name
- MCH
- Mounting Mode
- fixed
- Product Or Component Type
- spring charging motor
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2307034EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Category
- control accessory
- Package Weight(Lbs)
- 2.722 kg
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2.5515
- Customs Code
- 8501404020
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 4.051442948
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.091458565
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2307034EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationautomatic spring charging
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductMasterPact NW
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe electric Motor mechanism is equipped as standard with a limit switch contact CH that signals the “charged” position of the mechanism (springs charged), during 10 years
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.1405
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.1405
Environment Attributes Main
- Take Back
- No
- Carbon Footprint
- 13.84012424
- Environmental Disclosure
- ENVPEP2307034EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2307034EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2307034EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- spring charging motor
Range Of ProductMasterPact NW
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
