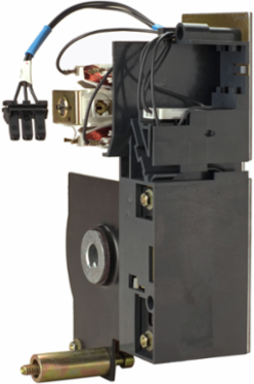

Square D S48206 Circuit breaker accessory, MasterPacT NW, spring charging motor, MCH, 24 to 30VDC, fixed

Circuit breaker accessory, MasterPacT NW, spring charging motor, MCH, 24 to 30VDC, fixed

Square D S48206 Circuit breaker accessory, MasterPacT NW, spring charging motor, MCH, 24 to 30VDC, fixed

MPN: S48206
UPC: 785901703006
PPN: SCH-S48206

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2199.66/ EA

Loading add to cart quantity...

Description

This is an automatic spring charging control accessory for MasterPacT NW circuit breakers. This is a control accessory. This spring charging accessory has a rated voltage for 24-30 VAC. This product complies with UL and CSA standards.

Specifications

Specifications

Range Of Product: MasterPact NW

Accessory / Separate Part Category: control accessory

Device Application: automatic spring charging

Circuit Breaker TypeY-frame

Product Or Component Typemotor

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2307034EN

Circularity ProfileENVEOLI2307034EN

Mercury FreeYes

Eu Rohs DirectiveCompliant with Exemptions

Complementary

Rated Voltage: 24-30 V DC
