Weidmuller

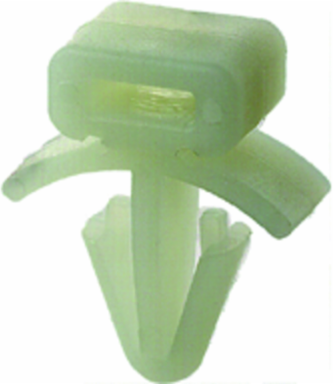

Weidmuller 1279200000 CBH 8.1/6.2 NATUR

CBH 8.1/6.2 NATUR
CBH 8.1/6.2 NATUR
  • MPN: 1279200000
  • PPN: WDM-1279200000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.36/ EA

Description

Cable ties, Height x width: 8.1 x 6.2 mm, Plastic, 80 N

Specifications

Installation Materials

Diameter of fastening hole
6.5 mm
Max. cable tie width
7.8 mm
Operating temperature range, min.
-40 °C
UL 94 flammability rating
V-2
MaterialPlastic
Operating temperature range, max.105 °C
Tensile strength80 N
Versionfor mounting plate

Classifications

ETIM 6.0
EC000449
eClass 9.0
23-15-90-07
eClass 10.0
27-40-07-90
ETIM 7.0EC000449
eClass 9.127-40-07-90
UNSPSC30-21-18-01

Approvals

ROHS
Conform

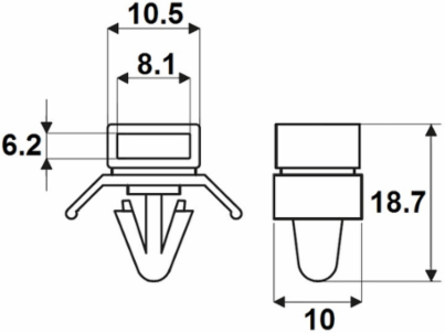

Dimensions And Weights

Width
6.2 mm
Height
8.1 mm
Depth
2 mm
Net weight
1.02 g
Width (inches)0.244 inch
Height (inches)0.319 inch
Depth (inches)0.079 inch
