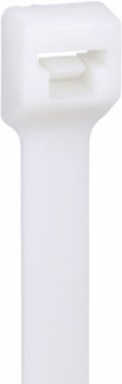

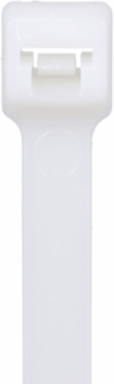

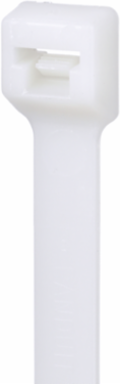

Panduit PLT1.5I-M Cable Tie, Natural, PA6.6, 5.6"L (142 mm), 40lb, PK1000
- MPN: PLT1.5I-M
- UPC: 074983540488
- PPN: PAN-PLT1.5I-M
- UNSPSC: 39121703
CAD
$0.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PLT1.5I-M cable tie provides reliable bundling for indoor installations and general-purpose routing. Intermediate cross section, 5.6 in (142mm) long with 40 lb (178 N) minimum loop tensile strength and a 0.06–1.38 in (1.5–35mm) bundle diameter range. It is natural Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, PTS, PPTS, and STS2 tools. Std. pkg. qty. 1000.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States, Costa Rica, Malaysia |
|---|---|
| Product Segment | IEI |
| Maximum Bundle Diameter (In.) | 1.38 |
| Overall Length (In.) | 5.6 |
| Product Type | Premium Cable Tie |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 178 |
| Maximum Operating Temperature (°C) | 85 |
| Military Cross Reference Number | MS3367-5-9 |
| Body Width (In.) | 0.142 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Operating Temperature (°C) | -60 |
| Body Thickness (In.) | 0.045 |
| Environment | Indoor |
| Air Handling Space | AH-2 Plenum |
| Any Reason Not to Sell | N |
|---|---|
| Minimum Bundle Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°F) | 185 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (mm) | 35 |
| Material | Nylon 6.6 |
| Minimum Installation Temperature (°C) | -20 |
| Body Width (mm) | 3.6 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Color | Natural |
| Minimum Bundle Diameter (In.) | 0.06 |
| Overall Length (mm) | 142 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Material Description | Nylon 6.6 |
| Flammability Rating | UL 94 V-2 |
Packaging Details
| UPC | 07498354048 |
|---|---|
| Standard Package Volume Ft3 | 0.1254 |
| Std Package Height In | 2.85 |
| Std Package Length In | 14.05 |
| Std Package Width In | 8.1 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1000 |
| Standard Carton Volume Ft3 | 3.1343 |
| Std Carton Height In | 16.912 |
| Std Carton Length In | 21.956 |
| Std Carton Width In | 14.581 |
| Std Ctn Qty | 25000 |
| EAN | 00074983540488 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 5,000.0000 |
| Pallet Volume | 37.611609 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983540488 |
|---|---|
| Standard Package Weight Pounds | 1.5406 |
| Std Package Height MM | 72.39 |
| Std Package Length MM | 356.87 |
| Std Package Width MM | 205.74 |
| UOM EA PK | PK |
| GTIN Carton | 50074983540483 |
| Standard Carton Weight Pounds | 38.5150 |
| Std Carton Height MM | 429.5648 |
| Std Carton Length MM | 557.6824 |
| Std Carton Width MM | 370.3574 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 300,000 |
| Pallet Weight | 462.1800 |
