Panduit PLT3S-C Pan-Ty® PLT3S-C Cable Tie, PA6.6, 11.5"L, 50lb, PK100
Panduit PLT3S-C Pan-Ty® PLT3S-C Cable Tie, PA6.6, 11.5"L, 50lb, PK100
- MPN: PLT3S-C
- UPC: 074983540662
- PPN: PAN-PLT3S-C
- UNSPSC: 39121703
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.53/ EA
Description

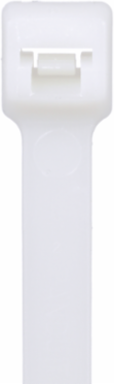

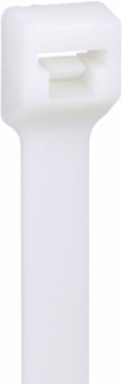

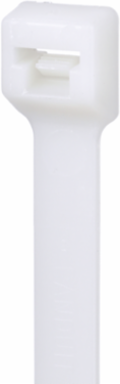

Panduit PLT3S-C Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 11.5” (292mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Specifications
Packaging Details
- UPC
- 07498354066
- Standard Package Volume Ft3
- 0.0496
- Std Package Height In
- 1.75
- Std Package Length In
- 13.25
- Std Package Width In
- 5.3
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.4961
- Std Carton Height In
- 5.9
- Std Carton Length In
- 16.6
- Std Carton Width In
- 8.9
- Std Ctn Qty
- 1000
- EAN
- 00074983540662
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 1,000.0000
- Pallet Volume
- 47.621181
- RoHS Compliant
- Compliant
GTIN Package00074983540662
Standard Package Weight Pounds0.5300
Std Package Height MM44.45
Std Package Length MM336.55
Std Package Width MM134.62
UOM EA PKPK
GTIN Carton50074983540667
Standard Carton Weight Pounds5.3000
Std Carton Height MM149.86
Std Carton Length MM421.64
Std Carton Width MM226.06
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity96,000
Pallet Weight508.8000
Specifications
- Country of Origin
- Costa Rica, Malaysia
- Product Segment
- IEI
- Minimum Operating Temperature (°C)
- -60
- Minimum Bundle Diameter (In.)
- 0.06
- Military Cross Reference Number
- MS3367-7-9
- Minimum Loop Tensile Strength (N)
- 222
- Maximum Bundle Diameter (In.)
- 3
- Body Thickness (mm)
- 1.3
- Overall Length (In.)
- 11.5
- For Use With
- GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
- Body Thickness (In.)
- 0.052
- Environment
- Indoor
- Body Width (mm)
- 4.8
- Maximum Bundle Diameter (mm)
- 76
Any Reason Not to SellN
MaterialNylon 6.6
Maximum Operating Temperature (°F)185
Minimum Bundle Diameter (mm)1.5
Maximum Operating Temperature (°C)85
Overall Length (mm)292
Minimum Installation Temperature (°F)-4
Body Width (In.)0.19
Minimum Loop Tensile Strength (lb)50
ColorNatural
Minimum Installation Temperature (°C)-20
Minimum Operating Temperature (°F)-76
Product TypePremium Cable Tie
Material DescriptionNylon 6.6
