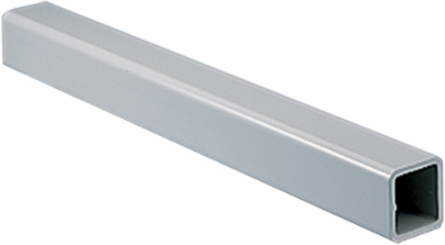

nVent Hoffman CCS8T20 Compact Series 4 Tube 1988x80x80mm Lt Gray Steel, Grit 4.8, IP55
- MPN: CCS8T20
- UPC: 783510681104
- PPN: HOF-CCS8T20
- UNSPSC: 39121325
CAD
$925.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For connecting the components together in the Compact Series 4 Pendant Arm System. This Compact Series 4 Tube, CCS8T20 item measures 1988x80x80mm with a material of Lt Gray, Steel.
Features
- Square and rectangular tubes are cold-formed, hollow, welded steel with 5-mm wall thickness available in various lengths
- Connection components fastened to support arm with set screws
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Documentation & Downloads
Specifications
Additional
- Length (L)
- 78.25 in (1988 mm)
- Maximum Weight Load
- 337 lb (153.2 kg)
- Height (H)
- 80 mm (3.15 in)
- Material
- Steel
- IP Rating
- IP55
- Inside Cross Section
- 7.6
- Protection Rating
- IP55
- Product Family
- Compact Series 4
- BABA
- Contact Manufacturer
Weight45 lb (20.4 kg)
Width (W)80 mm (3.15 in)
Wall Thickness4.8 mm (0.19 in)
FinishPowder Coated (RAL 7035 Light Gray polyester powder paint)
ColorLtGray (RAL 7035)
Size80 sq. mm
Sub BrandCompact
Depth (D)2000
