Weidmuller 2589240000 CD 80X40 4/6 GY
- MPN: 2589240000
- PPN: WDM-2589240000
CAD
$21.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

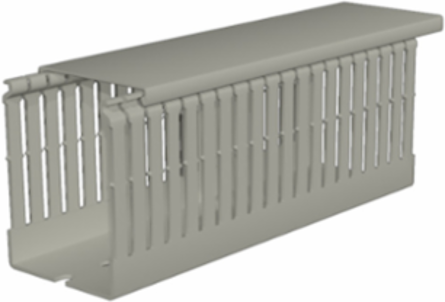

Cable duct, 80 mm x 40 mm, 4.00 mm x 6.00 mm, 2000 mm
Documentation & Downloads
Specifications
General Information
| Colour | grey |
|---|---|
| Halogen | Yes |
| Material | PVC / lead-free |
| Operating temperature range | -5...60 °C |
| Slit width | 4 mm |
| Type of mounting | when screwed in, With adhesive, Riveted |
| Usable cross-section | 2,655 mm² |
| Flexible wiring duct | No |
|---|---|
| Lid | Yes |
| Non-tracking | Yes |
| Slit gap | 6 mm |
| Standards | In accordance with DIN EN 50085 |
| UL 94 flammability rating | V-0 |
| Version of side panel | slotted |
Dimensions And Weights
| Length | 2,000 mm |
|---|---|
| Width | 40 mm |
| Height | 80 mm |
| Net weight | 558 g |
| Length (inches) | 78.74 inch |
|---|---|
| Width (inches) | 1.575 inch |
| Height (inches) | 3.15 inch |
Approvals
| Approvals | UR |
|---|---|
| UL File Number Search | E500004 |
| ROHS | Conform |
|---|
Classifications
| ETIM 6.0 | EC000012 |
|---|---|
| eClass 9.1 | 27-40-07-03 |
| ETIM 7.0 | EC000012 |
|---|---|
| eClass 10.0 | 27-40-07-03 |
