Weidmuller 2589480000 CD-COD 90X90 4/6 GY
- MPN: 2589480000
- PPN: WDM-2589480000
CAD
$104.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

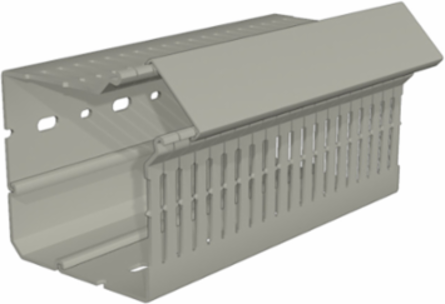

Cable duct corner duct, 90 mm x 90 mm, 4.00 mm x 6.00 mm, 2000 mm
Specifications
General Information
| Colour | grey |
|---|---|
| Halogen | Yes |
| Material | PVC / lead-free |
| Operating temperature range | -5...60 °C |
| Slit width | 4 mm |
| Type of mounting | when screwed in, With adhesive, Riveted |
| Usable cross-section | 8,100 mm² |
| Flexible wiring duct | No |
|---|---|
| Lid | Yes |
| Non-tracking | Yes |
| Slit gap | 6 mm |
| Standards | In accordance with DIN EN 50085 |
| UL 94 flammability rating | V-0 |
| Version of side panel | slotted |
Dimensions And Weights
| Length | 2,000 mm |
|---|---|
| Width | 90 mm |
| Height | 90 mm |
| Net weight | 1,438 g |
| Length (inches) | 78.74 inch |
|---|---|
| Width (inches) | 3.543 inch |
| Height (inches) | 3.543 inch |
Approvals
| ROHS | Conform |
|---|
Classifications
| ETIM 6.0 | EC001942 |
|---|---|
| eClass 9.1 | 27-40-07-07 |
| ETIM 7.0 | EC001942 |
|---|---|
| eClass 10.0 | 27-40-07-07 |
