Weidmuller 2590110000 CD-LID 25 GY
- MPN: 2590110000
- PPN: WDM-2590110000
CAD
$4.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

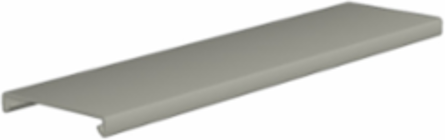

Cable duct cover, 25 mm
Documentation & Downloads
Specifications
General Information
| Colour | grey |
|---|---|
| Halogen | Yes |
| Material | PVC / lead-free |
| Operating temperature range | -5...60 °C |
| UL 94 flammability rating | V-0 |
| Flexible wiring duct | No |
|---|---|
| Lid | Yes |
| Non-tracking | Yes |
| Type of mounting | Snap-on |
Dimensions And Weights
| Length | 2,000 mm |
|---|---|
| Width | 25 mm |
| Net weight | 55 g |
| Length (inches) | 78.74 inch |
|---|---|
| Width (inches) | 0.984 inch |
Classifications
| ETIM 6.0 | EC000727 |
|---|---|
| eClass 9.1 | 27-40-07-76 |
| ETIM 7.0 | EC000727 |
|---|---|
| eClass 10.0 | 27-40-07-76 |
Approvals
| ROHS | Conform |
|---|
