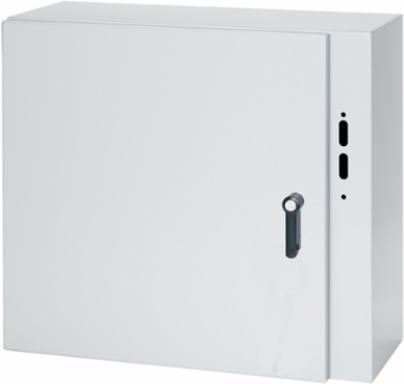

nVent Hoffman CDSC20228SS Concept Wallmount Disconnect Enclosure 20x22x8 Inch, SS304, NEMA Type 12

Description

Features

• Disconnect model of Concept enclosure series, includes 3 point latching for closure.
• Seams continuously welded and ground smooth
• External-formed 90-degree body flange
• Integral door ramp to properly align door and gasket to body flange
• Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
• Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
• Mounting holes in back of body for direct mounting or for optional external mounting brackets
• Stainless steel hidden hinges
• Standard full-access door opening
• Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
• Provisions on door for optional high-impact thermoplastic data pocket
• Seamless foam-in-place gasket
• Three-point door latching system installed on door interlocks with disconnect handle for added safety
• Adjustable door interlock bracket fastened to door
• Unique integrated door handle with tool-to-open feature and padlock option installed on door
• Self-grounding latch system with double seal
• Bonding provision on door; grounding stud on body
