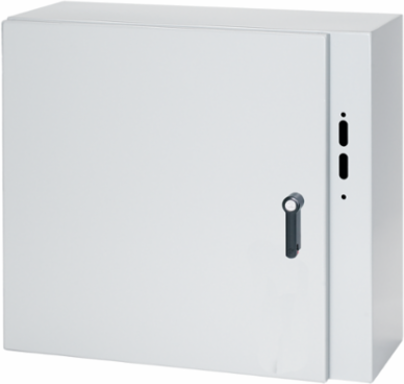

Nvent Hoffman CDSC36268SS Concept Wallmount Disconnect Enclosure 36x26x8 Inch, SS304, NEMA Type 12
Nvent Hoffman CDSC36268SS Concept Wallmount Disconnect Enclosure 36x26x8 Inch, SS304, NEMA Type 12
- MPN: CDSC36268SS
- UPC: 783510127572
- PPN: HOF-CDSC36268SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4620.00/ EA
Description
Concept stainless steel enclosure for indoor/outdoor use with 3pt latching and disconnect mounting. This Concept Wallmount Disconnect Enclosure 3Pt Latch, CDSC36268SS item measures 36x26x8 inch with a material of SS304 finish Brushed.
Features
- Disconnect model of Concept enclosure series, includes 3 point latching for closure.
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door ramp to properly align door and gasket to body flange
- Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Three-point door latching system installed on door interlocks with disconnect handle for added safety
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on door
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 660
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Mounting (G x H)
- 876 x 622
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- Concept
- Size
- 36.00x26.00x8.00 in
Height (H)914
Depth (D)203
Product FamilyConcept
Thickness (T)1.98
IP RatingIP66
Weight69
MaterialStainless Steel
