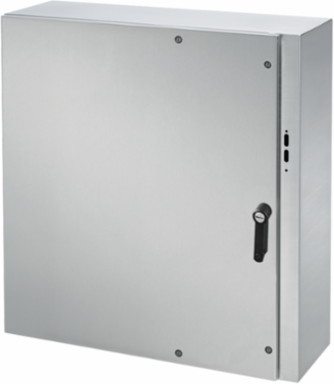

Nvent Hoffman CDSC603812SSR Concept Wallmount Disconnect Enclosure, 60x38x12 Inch, SS304, NEMA Type 12
Nvent Hoffman CDSC603812SSR Concept Wallmount Disconnect Enclosure, 60x38x12 Inch, SS304, NEMA Type 12
- MPN: CDSC603812SSR
- UPC: 783510148218
- PPN: HOF-CDSC603812SSR
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
For use in disconnect applications that require larger controls and stylized design features. This Concept Wallmount Disconnect 1/4-Turn Latch Type 4X, CDSC603812SSR item measures 60x38x12in with material of SS304 finish Brushed.
Features
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door alignment device to properly align door and gasket to body flange
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door latching system: latch installed on door with interlock mechanism on the disconnect handle for added safety; four quarter-turn latches also included
- Adjustable door interlock bracket fastened to door
- Unique integrated door handle with tool-to-open feature and padlock option installed on
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 964
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Latch Type
- 1 - 3-Point
- IP Rating
- IP66
- Sub Brand
- Concept
- Size
- 60.00x37.95x12.00 inch
Height (H)1,524
Depth (D)305
Product FamilyConcept
Thickness (T)1.98
Mounting (G x H)1486 x 926
Weight151
MaterialStainless Steel
NEMA Rating12 Indoor, dust-resistant
