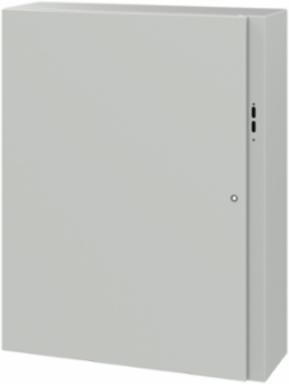

nVent Hoffman CDSC483812LG Concept Disconnect Enclosure Type 4, 48.00x38.00x12.00, Lt Gray, Steel

MPN: CDSC483812LG
UPC: 783510166496
PPN: HOF-CDSC483812LG
UNSPSC: 39121324

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2410.15/ EA

Qty:

Loading add to cart quantity...

Description

Concept Disconnect Enclosures provide an extra level of visual ON or OFF indication. This Concept Disconnect Enclosure Type 4, CDSC483812LG item measures 48.00x38.00x12.00 inches with a material of Steel colored Lt Gray.

Features

Seams continuously welded and ground smooth
External-formed 90-degree body flange channels away liquids
Bonding provision on door; grounding stud on body
Holes in body for mounting disconnect operating handle and operating mechanism
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting for optional external mounting brackets
Removable door with hidden hinges for clean, aesthetic appearance
Corner-formed doors
Provisions on door for optional high-impact thermoplastic data pocket
Seamless foam-in-place gasket
Door alignment device on doors wider than 30 inches (762mm)
Concept-style latching system interlocks with the disconnect handle for added safety
Unique integrated door handle with tool-to-open feature and padlocking option
Self-grounding latch system with double seal
Four hinges on 60-inch-high enclosures
Simple easy-to-remove and install hinge pins with captivation clip
High-torque threadless studs and fasteners on door
V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
