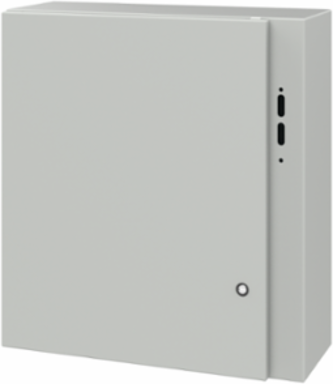

Nvent Hoffman CDSC24228LG Concept Disconnect Enclosure Type 4, 24 x 22 x 8 Inch, Steel, IP66
Nvent Hoffman CDSC24228LG Concept Disconnect Enclosure Type 4, 24 x 22 x 8 Inch, Steel, IP66
- MPN: CDSC24228LG
- UPC: 783510165796
- PPN: HOF-CDSC24228LG
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1266.46/ EA
Description
Concept Disconnect Enclosures provide an extra level of visual ON or OFF indication. This Concept Disconnect Enclosure Type 4, CDSC24228LG item measures 24.00x22.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange channels away liquids
- Bonding provision on door; grounding stud on body
- Holes in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door alignment device on doors wider than 30 inches (762mm)
- Concept-style latching system interlocks with the disconnect handle for added safety
- Unique integrated door handle with tool-to-open feature and padlocking option
- Self-grounding latch system with double seal
- Four hinges on 60-inch-high enclosures
- Simple easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 559
- Protection Rating
- NEMA Type 4
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Mounting (G x H)
- 572 x 521
- Latch Type
- 2-Point
- NEMA Rating
- 4 Watertight
- Sub Brand
- Concept
- Size
- 24.00x22.00x8.00 in
Height (H)610
Depth (D)203
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Latch Quantity1
IP RatingIP66
Weight20
MaterialSteel
ColorRAL 7035 Gray
