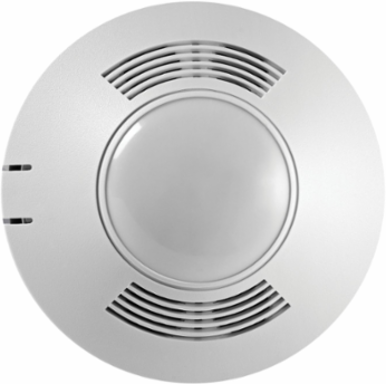

Cooper Lighting Solutions OAC-DT-2000-MV Ceiling Sensor w/Daylight Sensor, Dual Technology, 360 Degree, 2000 square feet, 120 to 347 VAC, 50/60 Hz.
- MPN: OAC-DT-2000-MV
- UPC: 080083579426
- PPN: COL-OAC-DT-2000-MV
- UNSPSC: 39122236
CAD
$170.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The MicroSet Dual Technology Line Voltage Occupancy Sensing Ceiling Sensor is a motion sensing lighting control that is used for energy savings and convenience. MicroSet self-adjusting Dual Technology sensors drastically simplify and reduce a contractor’s installation and adjustment time period. The sensor is available in both single and dual load control.
Features
- MicroSet self-adjusting time delay and sensitivity
- Built-in light level sensor
- Units available for control of single or two separate loads
- Products tested to NEMA WD 7 – 2011 Occupancy Motion Sensors Standard
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-347 V
- Mounting
- Ceiling Mount, Ceiling tile, 4" square box, round mud ring, 4" octagon box
- Coverage
- 2000 sq. ft.
- Light Level Sensing
- 0 to 300 foot-candles
- Operating Temperature
- 32°F - 104°F (0°C - 40°C)
- Size
- 1.42 in H x 4.5 in W
- LED Indicators
- Red for PIR detection, Green for Ultrasonic detection
- Country of Origin
- Malaysia
Wattage0 - 2700 W
TechnologyPassive Infrared (PIR), Ultrasonic
Frequency50/60 Hz
Time DelaySelf-adjustable, 15 sec/test (10 min auto), selectable 5, 15, 30 min
Humidity20% to 90% non-condensing
Housing MaterialPolycarbonate (UL 94V-0)
ComplianceNEMA WD 7 - 2011, FCC, cULus Listed, RoHS Compliant
Lamp TypeIncandescent, Compact Fluorescent (Not Included)
