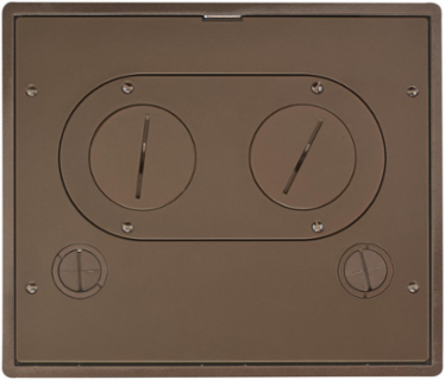

Hubbell Wiring Device-Kellems 610GTFFCVRBRZ SystemOne Recessed Floor Box Cover, 3.800x15.600x14.700 Inch, Cast Aluminum
- MPN: 610GTFFCVRBRZ
- UPC: 783585695013
- PPN: HBL-610GTFFCVRBRZ
- UNSPSC: 39121307
CAD
$823.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne Recessed 4, 6, 10-Gang Floor Box Rectangular Flush Cover, For Use in Concrete Floors.
Features
- Flush Style Cover
- (2) 2" Conduit Hubs and (2) 1" Conduit Hubs with (2) ¾" Threaded Reducers
- Die Cast Aluminum Cover Construction for Enhanced Durability
- Meets UL 514A Scrub Water Requirements
- ADA Compliant
- Furniture Feed with (2) 2" Threaded Hubs and (2) 1" Threaded Hubs with (2) 3/4" Reducers
Documentation & Downloads
Specifications
Key Specifications
- Application - For Use On
- Concrete
- Industry Standard(s)
- cULus;UL514
- Type of Use
- Tile/Flush
- Application
- For Use with Concrete Floor Boxes
- Color
- Bronze Powder Coat
- Mounting
- Screw Mount
- Standard
- cULus;UL514
- Type
- Furniture Feed Concrete Floor Box Cover
- General Literature Asset 1 Display Text
- SystemOne Eternal™ Series 6-Gang Recessed Floor Boxes
- Mounting Type
- Screw Mount
- Freight Class Code
- 06111001
- Image Actual Or Representative
- A
- Material
- Cast Aluminum
- BOX SIZE
- 3.800x15.600x14.700 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585695013
- Case Weight
- 4.100 lb.
Cover ShapeRectangle
Mounting MethodMounts to Box
Typical ApplicationTile/Flush
Cable Entry(4) Threaded Hubs
Length10.5 in
Special FeaturesFurniture Feed with (2) 2" Threaded Hubs and (2) 1" Threaded Hubs with (2) 3/4" Reducers
Sub BrandRecessed Concrete Floor Boxes
Width9 in
General Literature Asset 2 Display TextSystemOne Eternal™ Series 8/10-Gang Recessed Floor Boxes
Class CodeA36
Harmonization Code7616995190
Sub Class CodeA36A330
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
NAICS Code3359326106
