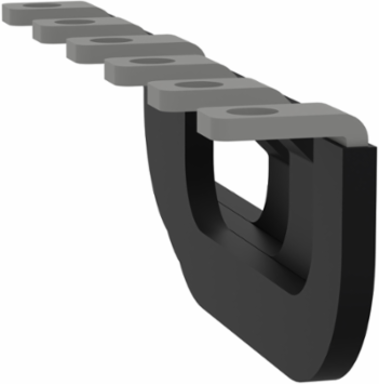

Schneider Electric LAD9150371 Changeover bar, Tesys Deca Advanced, for 3P D115-150A6 contactors
- MPN: LAD9150371
- PPN: SCH-LAD9150371
CAD
$113.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These accessories are changeover bars for TeSys Deca Advanced contactors 3 poles 115A to 150A. These busbars are designed to be attached on the contactor connectors to assemble a changeover application. The rated current is up to 150A. They operate within a temperature range of -40°C to 70°C and can be used at altitudes of up to 3000m without derating. Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4 |
| Local Publishable Date | 2026-07-01 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Short Name | LAD9 |
| Number Of Poles | 3P |
| Quantity Per Set | 1 |
| Range Of Product | TeSys Deca |
| Sustainable Packaging | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544493040 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2538 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Package Weight(Lbs) | 956 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | LC1D115, LC1D150 |
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
